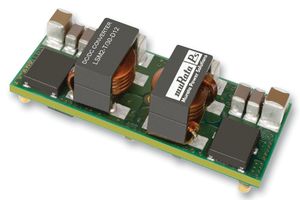

LSM2-T/30-D12-C
CONVERTER, DC/DC, 0.8-5V/30A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoLSM2-T/30-D12-C
Order Code1631773
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoLSM2-T/30-D12-C
Order Code1631773
Product RangeTUK SGACK902S Keystone Coupler
Technical Datasheet
Power Supply ApplicationsITE
DC / DC Converter TypeDOSA
Output Power Max125W
Output Voltage Min800mV
Output Voltage Max5V
Output Current Max30A
DC / DC Converter Output TypeAdjustable
Input Voltage DC Min8.3V
Input Voltage DC Max14V
Height9.14mm
Depth33.02mm
Width13.46mm
Product RangeTUK SGACK902S Keystone Coupler
Technical Specifications
Power Supply Applications
ITE
Output Power Max
125W
Output Voltage Max
5V
DC / DC Converter Output Type
Adjustable
Input Voltage DC Max
14V
Depth
33.02mm
Product Range
TUK SGACK902S Keystone Coupler
DC / DC Converter Type
DOSA
Output Voltage Min
800mV
Output Current Max
30A
Input Voltage DC Min
8.3V
Height
9.14mm
Width
13.46mm
SVHC
No SVHC (07-Jul-2017)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85044030
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (07-Jul-2017)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.0078
