Our range of sensor connectors includes male connectors, female connectors, and sensor cables

Types of sensor connector

The primary use of such connectors is to create complex automated systems, but the variety of processes that employ them creates demand for different variants. These range from uses such as simple digital commands, to heavy-duty data and power transfer.

The connectors are easy to differentiate due to their visual features and simple coding system. This means understanding which one to use under any circumstance is mostly fool-proof and practical. Key sensor connector coding and applications are summarised here (Other codes are available):

A-coded: A variety of sensors, actuators, and motors
B-coded: Network cables for Fieldbus
C-coded: AC sensors and actuators
D-coded: High-speed data transfer up to 100Mbps for network cables
X-coded: High-speed data transfer to 10Gbps
S-Coded: Newer variant of C-coded
T-coded: Newer variant of A-coded

Manufacturer Part No	Order Code	Manufacturer / Description	Price For	Price	Product Range	Connector Type A	Shell Type	Sensor Connector Size	Accessory Type	Circular Connector Shell Style	Connector Type B	For Use With	Sensor Connector Gender	No. of Contacts	Circular Connector Contact Type	Cable Length - Metric	No. of Positions	Coupling Style	Cable Length - Imperial	Sensor Contact Type	Sensor Connector Mounting	IP / NEMA Rating	Operating Temperature Range	Connector Coding	Connector Body Material	Contact Material	Contact Plating	Current Rating	Voltage Rating

643260100604	4168233 RoHS	WURTH ELEKTRONIK Sensor Connector WR-CIRC Series M12 Female 4 Positions PCB Socket Straight Panel Mount	Each	1+HK$201.750 10+HK$184.930 25+HK$174.850 100+HK$164.770 250+HK$144.590 More Pricing...	WR-CIRC Series	-	-	M12	-	-	-	-	Female	-	-	-	4 Positions	-	-	PCB Socket	0	IP68	-	A Coded	Zinc Alloy Body	Copper Alloy	Gold	5A	250V
MSAP-04BFFB-SR7001	4535004 RoHS	AMPHENOL LTW Sensor Connector M Series M12 Female 4 Positions Screw Socket Right Angle Cable Mount	Each	1+HK$95.590 10+HK$81.260 25+HK$75.170 100+HK$69.070 250+HK$64.740 More Pricing...	M Series	-	-	M12	-	-	-	-	Female	-	-	-	4 Positions	-	-	Screw Socket	Right Angle Cable Mount	IP67	-	A Coded	Thermoplastic Body	Copper Alloy	Gold	4A	250V
1501252	2308650 Data Sheet RoHS	PHOENIX CONTACT Sensor Connector M8 Male 3 Positions Screw Pin Straight Cable Mount	Each	1+HK$160.240 10+HK$159.990 25+HK$159.740 100+HK$159.480 250+HK$131.210	-	-	-	M8	-	-	-	-	Male	-	-	-	3 Positions	-	-	Screw Pin	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate) Body	Brass	Gold	4A	60V
BS 5131-0	1372036 Data Sheet RoHS	TURCK SENSOR CONNECTOR M8 PLUG 3POS CABLE	Each	1+HK$289.500 5+HK$278.270 10+HK$271.400 25+HK$263.150 50+HK$252.310 More Pricing...	-	-	-	-	-	-	-	-	Male	-	-	-	-	-	-	Solder Pin	Straight Cable Mount	-	-	-	Nylon (Polyamide) Body	Bronze	-	-	-
ELKA 5012 PG7	1207165 Data Sheet RoHS	HIRSCHMANN Sensor Connector E Series M12 M12 Female 5 Positions Screw Socket Straight Cable Mount	Each	1+HK$183.290 10+HK$179.890 25+HK$178.080 100+HK$176.270 250+HK$145.140 More Pricing...	E Series M12	-	-	M12	-	Cable Mount Receptacle	-	-	Female	5Contacts	Screw Socket	-	5 Positions	Bayonet	-	Screw Socket	Straight Cable Mount	IP67	-	A Coded	Nylon (Polyamide) Body	Copper, Zinc	Tin	4A	50V
1694347	2481211 Data Sheet RoHS	PHOENIX CONTACT Sensor Connector M8 Male 4 Positions Solder Pin Straight Panel Mount	Each	1+HK$131.640 10+HK$121.110 25+HK$118.690 100+HK$116.270 250+HK$113.850	-	-	-	M8	-	-	-	-	Male	-	-	-	4 Positions	-	-	Solder Pin	Straight Panel Mount	IP67	-	A Coded	Nylon 6.6 (Polyamide 6.6) Body	Brass	Gold	4A	30V
1511857	2443358 Data Sheet RoHS	PHOENIX CONTACT Sensor Connector M12 Male 8 Positions Screw Pin Straight Cable Mount	Each	1+HK$345.720 5+HK$332.050 10+HK$318.370 25+HK$304.690 50+HK$298.600	-	-	-	M12	-	-	-	-	Male	-	-	-	8 Positions	-	-	Screw Pin	Straight Cable Mount	IP67	-	A Coded	Nylon (Polyamide) Body	Brass	Gold	2A	30V
T4110002081-000	2627745 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector PG9/6-8mm M12 Female 8 Positions Screw Socket Straight Cable Mount	Each	1+HK$102.800 10+HK$87.400 25+HK$81.920 100+HK$74.290 250+HK$69.640 More Pricing...	-	-	-	M12	-	-	-	-	Female	-	-	-	8 Positions	-	-	Screw Socket	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate), Glass Filled Body	Bronze	Gold	4A	30V
T4110001051-000	2627747 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector PG7/4-6mm M12 Female 5 Positions Screw Socket Straight Cable Mount	Each	1+HK$79.830 10+HK$67.830 100+HK$57.660 250+HK$54.040 500+HK$51.470 More Pricing...	-	-	-	M12	-	-	-	-	Female	-	-	-	5 Positions	-	-	Screw Socket	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate), Glass Filled Body	Bronze	Gold	4A	60V
99-3787-810-08	2522975 Data Sheet RoHS	BINDER Sensor Connector X-Coded CAT6A 825 Series M12 Male 8 Positions IDC / IDT Pin	Each	1+HK$893.990 5+HK$876.120 10+HK$858.240 25+HK$840.360 50+HK$822.480 More Pricing...	825 Series	-	-	M12	-	-	-	-	Male	-	-	-	8 Positions	-	-	IDC / IDT Pin	Straight Cable Mount	IP67	-	X Coded	-	Brass	Gold	500mA	50V
T4111001041-000	2627771 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector PG7/4-6mm M12 Male 4 Positions Screw Pin Straight Cable Mount	Each	1+HK$66.500 10+HK$56.480 100+HK$48.010 250+HK$45.000 500+HK$42.860 More Pricing...	-	-	-	M12	-	-	-	-	Male	-	-	-	4 Positions	-	-	Screw Pin	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate), Glass Filled Body	Brass	Gold	4A	250V

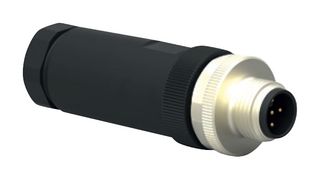

T4111001051-000	2627739 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector PG7/4-6mm M12 Male 5 Positions Screw Pin Straight Cable Mount	Each	1+HK$78.160 10+HK$66.410 100+HK$56.440 250+HK$52.910 500+HK$50.390 More Pricing...	-	-	-	M12	-	-	-	-	Male	-	-	-	5 Positions	-	-	Screw Pin	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate), Glass Filled Body	Brass	Gold	5A	60V
T4011008031-000	2723617 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector M8 Male 3 Positions Screw Pin Straight Cable Mount	Each	1+HK$98.780 10+HK$83.910 25+HK$78.660 100+HK$71.320 250+HK$66.870 More Pricing...	-	-	-	M8	-	-	-	-	Male	-	-	-	3 Positions	-	-	Screw Pin	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate) Body	Brass	Gold	3A	60V
T4010008041-000	2723622 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector M8 Female 4 Positions Screw Socket Straight Cable Mount	Each	1+HK$112.450 10+HK$95.580 25+HK$89.590 100+HK$81.240 250+HK$76.160 More Pricing...	-	-	-	M8	-	-	-	-	Female	-	-	-	4 Positions	-	-	Screw Socket	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate) Body	Brass	Gold	3A	30V
1424682	2792842 Data Sheet RoHS	PHOENIX CONTACT Sensor Connector CAT5 PROFINET Series M12 Male 4 Positions Push In Pin Straight Cable Mount	Each	1+HK$198.980 10+HK$198.720 25+HK$198.460 100+HK$189.840 250+HK$165.120	PROFINET Series	-	-	M12	-	-	-	-	Male	-	-	-	4 Positions	-	-	Push In Pin	Straight Cable Mount	IP65, IP67	-	D Coded	Zinc Diecast Body	Bronze	Gold	4A	60V
ELKA 4012 PG7	532095 Data Sheet RoHS	HIRSCHMANN Sensor Connector E Series M12 M12 Female 4 Positions Screw Socket Straight Cable Mount	Each	1+HK$164.080 10+HK$160.800 100+HK$157.520 250+HK$154.240 500+HK$150.960 More Pricing...	E Series M12	-	-	M12	-	Cable Mount Receptacle	-	-	Female	4Contacts	Screw Socket	-	4 Positions	Bayonet	-	Screw Socket	Straight Cable Mount	IP67	-	A Coded	Nylon (Polyamide) Body	Brass	Tin	4A	250V
T4111002081-000	2627743 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector PG9/6-8mm M12 Male 8 Positions Screw Pin Straight Cable Mount	Each	1+HK$100.370 10+HK$85.310 25+HK$79.960 100+HK$72.520 250+HK$67.980 More Pricing...	-	-	-	M12	-	-	-	-	Male	-	-	-	8 Positions	-	-	Screw Pin	Straight Cable Mount	IP67	-	A Coded	PBT (Polybutylene Terephthalate), Glass Filled Body	Bronze	Gold	2A	30V
1424658	2792818 Data Sheet RoHS	PHOENIX CONTACT Sensor Connector M12 Push-In M12 Male 5 Positions Push In Pin Straight Cable Mount	Each	1+HK$219.720 10+HK$218.930 25+HK$218.130 100+HK$217.340 250+HK$216.540	M12 Push-In	-	-	M12	-	-	-	-	Male	-	-	-	5 Positions	-	-	Push In Pin	Straight Cable Mount	IP65, IP67	-	A Coded	Nylon 6.6 (Polyamide 6.6) Body, Zinc Alloy Body	Bronze	Gold	4A	60V
21032812405	1161650 Data Sheet RoHS	HARTING Sensor Connector HARAX Series M12 Female 4 Positions IDC / IDT Socket Straight Cable Mount	Each	1+HK$355.140 5+HK$306.160 10+HK$278.130 20+HK$250.100	HARAX Series	-	-	M12	-	-	-	-	-	-	-	-	4 Positions	-	-	IDC / IDT Socket	Straight Cable Mount	IP67	-	D Coded	Zinc Body	Brass	Gold	4A	50V
FS 4.5-0.5	1613010 Data Sheet RoHS	TURCK SENSOR CONNECTOR	Each	1+HK$84.480	-	-	-	-	-	-	-	-	-	-	-	-	5 Positions	-	-	-	Straight Cable Mount	IP68	-	-	Brass Body	Brass	Gold	-	-
851-004-203R001.	2523526 Data Sheet RoHS	NORCOMP SENSOR CONNECTOR M5 RCPT 4POS PANEL	Each	1+HK$44.630 10+HK$44.400	VULCON Series	-	-	M5	-	-	-	-	Female	-	-	-	4 Positions	-	-	Solder Socket	Straight Panel Mount	IP67	-	-	PBT (Polybutylene Terephthalate) Body	Brass	Gold	1A	60V
T4111012081-000	2627722 Data Sheet RoHS	TE CONNECTIVITY Sensor Connector PG9/6-8mm M12 Male 8 Positions Screw Pin Straight Cable Mount	Each	1+HK$135.000 10+HK$114.720 25+HK$107.540 100+HK$97.530 250+HK$91.430 More Pricing...	-	-	-	M12	-	-	-	-	Male	-	-	-	8 Positions	-	-	Screw Pin	Straight Cable Mount	IP67	-	A Coded	Brass Body	Brass	Gold	2A	30V
09-3782-91-08	2522976 Data Sheet RoHS	BINDER Sensor Connector X-Coded Panel 876 Series M12 Female 8 Positions Solder Socket	Each	1+HK$201.000 10+HK$184.920 25+HK$181.230 100+HK$177.530 250+HK$173.830 More Pricing...	876 Series	-	-	M12	-	-	-	-	-	-	-	-	8 Positions	-	-	Solder Socket	Straight Panel Mount	IP67	-	X Coded	-	Bronze	Gold	500mA	50V
M12A-12BFFA-SL7001	2707993 Data Sheet RoHS	AMPHENOL LTW Sensor Connector 12 Pole M12 Receptacle M Series M12 Female 12 Positions Solder Socket	Each	1+HK$94.900 10+HK$80.620 25+HK$77.940 100+HK$75.260 250+HK$72.580 More Pricing...	M Series	-	-	M12	-	-	-	-	Female	-	-	-	12 Positions	-	-	Solder Socket	Straight Cable Mount	IP67	-	A Coded	Glass Filled Nylon (Polyamide), Zinc Alloy Body	Copper Alloy	Gold	1.5A	30V
M12A-12BMMA-SL7001	2707992 Data Sheet RoHS	AMPHENOL LTW Sensor Connector 12 Pole M12 Plug M Series M12 Male 12 Positions Solder Pin	Each	1+HK$73.700 10+HK$62.680 25+HK$57.970 100+HK$53.180 250+HK$51.950 More Pricing...	M Series	-	-	M12	-	-	-	-	Male	-	-	-	12 Positions	-	-	Solder Pin	Straight Cable Mount	IP67	-	A Coded	Glass Filled Nylon (Polyamide), Zinc Alloy Body	Copper Alloy	Gold	1.5A	30V
