We offer a wide range of crystal and ceramic resonators, for SMD or through hole mounting

What is a resonator

A resonator is a device or system that exhibits resonance or resonant behaviour. That is, it naturally oscillates with greater amplitude at some frequencies, called resonant frequencies, than at other frequencies. The oscillations in a resonator can be either electromagnetic or mechanical (including acoustic). Resonators are used to either generate waves of specific frequencies or to select specific frequencies from a signal. Musical instruments use acoustic resonators that produce sound waves of specific tones. Another example is quartz crystals used in electronic devices such as radio transmitters and quartz watches to produce oscillations of very precise frequency. Resonators can be built to use the piezoelectric effect found within quartz crystals. Crystals and almost all elastic materials have a natural resonance frequency, which can be used through appropriate sensors. The resonance frequency depends on the crystal size, shape, elasticity, and speed of sound in the substance. Crystals for high frequency are usually cut into simple shapes, such as square slices. Typical low-frequency crystals are often cut into tuning fork shapes, such as those used in watches. If high accuracy is not essential, ceramic resonators can also be used instead of quartz crystal resonators.

Applications for resonance

Resonance can be employed to maintain AC circuit oscillations at a constant frequency, just as a pendulum can be used to maintain constant oscillation speed in a timekeeping mechanism.
Resonance can be exploited for its impedance properties: either dramatically increasing or decreasing impedance for certain frequencies. Circuits designed to screen certain frequencies out of a mix of different frequencies are called filters.

			Price For		Quantity

CSTLS4M00G53-B0	2443272 Data Sheet RoHS	MURATA RESONATOR CERAMIC 4MHZ THD	Each (Supplied on Cut Tape) Cut Tape	5+ HK$1.770 10+ HK$1.310 100+ HK$1.180 500+ HK$1.110 1000+ HK$1.080	Total:HK$8.85 Min: 5 / Mult: 5	4MHz	-	4MHz	3 Pin	± 0.5%	-	30ohm	-	3Pins	-	Through Hole	-20°C	80°C

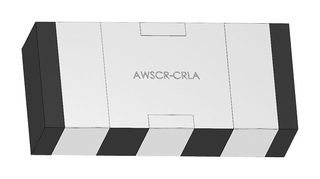

AWSCR-5.00CRLA-C39-T3	3501588 Data Sheet RoHS	ABRACON Resonator AWSCR-CRLA Series 5 MHz ± 0.5% ± 0.3% 40 ohm	Each (Supplied on Cut Tape) Cut Tape	1+ HK$1.960 10+ HK$1.930 25+ HK$1.890 50+ HK$1.850 100+ HK$1.810 More Pricing...	Total:HK$1.96 Min: 1 / Mult: 1	5MHz	AWSCR-CRLA Series	5MHz	3 Pin	± 0.5%	± 0.3%	40ohm	-	3Pins	-	SMD	-40°C	85°C
AWSCR-5.00CRLA-C39-T3	3501588RL Data Sheet RoHS	ABRACON Resonator AWSCR-CRLA Series 5 MHz ± 0.5% ± 0.3% 40 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	100+ HK$1.810 500+ HK$1.770	Total:HK$181.00 Min: 100 / Mult: 5	5MHz	AWSCR-CRLA Series	5MHz	3 Pin	± 0.5%	± 0.3%	40ohm	-	3Pins	-	SMD	-40°C	85°C
CSTNE16M0V530000R0	4127618RL Data Sheet RoHS	MURATA Resonator CSTNE_V Series 16 MHz ± 0.5% ± 0.3% 40 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	5+ HK$2.190 10+ HK$1.910 100+ HK$1.670 500+ HK$1.510 1000+ HK$1.450	Total:HK$10.95 Min: 5 / Mult: 5	16MHz	CSTNE_V Series	16MHz	3 Pin	± 0.5%	± 0.3%	40ohm	-	3Pins	-	SMD	-40°C	85°C
CSTNE16M0VH3C000R0	4127622 Data Sheet RoHS	MURATA Resonator CSTNE_VH3C Series 16 MHz ± 0.07% ± 0.13% 40 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$2.920 10+ HK$2.490 100+ HK$2.190 500+ HK$1.990 1000+ HK$1.900	Total:HK$14.60 Min: 5 / Mult: 5	16MHz	CSTNE_VH3C Series	16MHz	3 Pin	± 0.07%	± 0.13%	40ohm	-	3Pins	-	SMD	-40°C	125°C
CSTNE16M0V530000R0	4127618 Data Sheet RoHS	MURATA Resonator CSTNE_V Series 16 MHz ± 0.5% ± 0.3% 40 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$2.190 10+ HK$1.910 100+ HK$1.670 500+ HK$1.510 1000+ HK$1.450	Total:HK$10.95 Min: 5 / Mult: 5	16MHz	CSTNE_V Series	16MHz	3 Pin	± 0.5%	± 0.3%	40ohm	-	3Pins	-	SMD	-40°C	85°C
CSTNE16M0V53L000R0	4127629 Data Sheet RoHS	MURATA Resonator CSTNE_V_L Series 16 MHz ± 0.5% ± 0.2% 40 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$2.310 10+ HK$1.960 100+ HK$1.700 500+ HK$1.540 1000+ HK$1.480	Total:HK$11.55 Min: 5 / Mult: 5	16MHz	CSTNE_V_L Series	16MHz	3 Pin	± 0.5%	± 0.2%	40ohm	-	3Pins	-	SMD	-40°C	85°C
CSTNE16M0V53L000R0	4127629RL Data Sheet RoHS	MURATA Resonator CSTNE_V_L Series 16 MHz ± 0.5% ± 0.2% 40 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	5+ HK$2.310 10+ HK$1.960 100+ HK$1.700 500+ HK$1.540 1000+ HK$1.480	Total:HK$11.55 Min: 5 / Mult: 5	16MHz	CSTNE_V_L Series	16MHz	3 Pin	± 0.5%	± 0.2%	40ohm	-	3Pins	-	SMD	-40°C	85°C
CSTNE16M0VH3C000R0	4127622RL Data Sheet RoHS	MURATA Resonator CSTNE_VH3C Series 16 MHz ± 0.07% ± 0.13% 40 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	5+ HK$2.920 10+ HK$2.490 100+ HK$2.190 500+ HK$1.990 1000+ HK$1.900	Total:HK$14.60 Min: 5 / Mult: 5	16MHz	CSTNE_VH3C Series	16MHz	3 Pin	± 0.07%	± 0.13%	40ohm	-	3Pins	-	SMD	-40°C	125°C
CSTNE8M00GH5L000R0	4127627 Data Sheet RoHS	MURATA Resonator CSTNE_GH5L Series 8 MHz ± 0.07% ± 0.11% 40 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$2.490 50+ HK$1.930 100+ HK$1.850 500+ HK$1.230	Total:HK$12.45 Min: 5 / Mult: 5	8MHz	CSTNE_GH5L Series	8MHz	3 Pin	± 0.07%	± 0.11%	40ohm	-	3Pins	-	SMD	-40°C	85°C
CSTNE8M00GH5L000R0	4127627RL Data Sheet RoHS	MURATA Resonator CSTNE_GH5L Series 8 MHz ± 0.07% ± 0.11% 40 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	100+ HK$1.850 500+ HK$1.230	Total:HK$185.00 Min: 100 / Mult: 5	8MHz	CSTNE_GH5L Series	8MHz	3 Pin	± 0.07%	± 0.11%	40ohm	-	3Pins	-	SMD	-40°C	85°C
CSTCR7M00G53-R0	4242756 Data Sheet RoHS	MURATA Resonator CSTCR_G Series 7 MHz ± 0.5% ± 0.2% 50 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$2.310 10+ HK$2.050 100+ HK$1.780 500+ HK$1.610 1000+ HK$1.550	Total:HK$11.55 Min: 5 / Mult: 5	7MHz	CSTCR_G Series	7MHz	3 Pin	± 0.5%	± 0.2%	50ohm	-	3Pins	-	SMD	-20°C	80°C
CSTLS3M64G56-A0	4242747 Data Sheet RoHS	MURATA Resonator CSTLS_G Series 3.64 MHz ± 0.5% -0.4% to +0.2% 50 ohm	Each	5+ HK$1.580 10+ HK$1.370 100+ HK$1.210 500+ HK$1.100 1000+ HK$1.060	Total:HK$7.90 Min: 5 / Mult: 5	3.64MHz	CSTLS_G Series	3.64MHz	3 Pin	± 0.5%	-0.4% to +0.2%	50ohm	-	3Pins	-	Through Hole	-20°C	80°C
CSTNE10M0G55A000R0	4127660RL Data Sheet RoHS	MURATA Resonator CSTNE_G_A Series 10 MHz ± 0.5% ± 0.2% 40 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	5+ HK$2.090 50+ HK$1.680 250+ HK$1.610 500+ HK$1.470 1500+ HK$1.390	Total:HK$10.45 Min: 5 / Mult: 5	10MHz	CSTNE_G_A Series	10MHz	3 Pin	± 0.5%	± 0.2%	40ohm	-	3Pins	-	SMD	-40°C	125°C
CSTNE10M0G55A000R0	4127660 Data Sheet RoHS	MURATA Resonator CSTNE_G_A Series 10 MHz ± 0.5% ± 0.2% 40 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$2.090 50+ HK$1.680 250+ HK$1.610 500+ HK$1.470 1500+ HK$1.390	Total:HK$10.45 Min: 5 / Mult: 5	10MHz	CSTNE_G_A Series	10MHz	3 Pin	± 0.5%	± 0.2%	40ohm	-	3Pins	-	SMD	-40°C	125°C
CSTCR6M40G55-R0	4242736 Data Sheet RoHS	MURATA Resonator CSTCR_G Series 6.4 MHz ± 0.5% ± 0.2% 50 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$3.060 10+ HK$2.650 100+ HK$2.300 500+ HK$2.080 1000+ HK$2.000	Total:HK$15.30 Min: 5 / Mult: 5	6.4MHz	CSTCR_G Series	6.4MHz	3 Pin	± 0.5%	± 0.2%	50ohm	-	3Pins	-	SMD	-20°C	80°C
CSTNE20M0V53Z000R0	4127567 Data Sheet RoHS	MURATA Resonator CSTNE_V Series 20 MHz ± 0.5% ± 0.3% 40 ohm	Each (Supplied on Full Reel) Full Reel Packaging Options	3000+ HK$1.020 15000+ HK$0.993	Total:HK$3,060.00 Min: 3000 / Mult: 3000	20MHz	CSTNE_V Series	20MHz	3 Pin	± 0.5%	± 0.3%	40ohm	-	3Pins	-	SMD	-40°C	125°C
CSTCR7M00G53-R0	4242756RL Data Sheet RoHS	MURATA Resonator CSTCR_G Series 7 MHz ± 0.5% ± 0.2% 50 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	100+ HK$1.780 500+ HK$1.610 1000+ HK$1.550	Total:HK$178.00 Min: 100 / Mult: 5	7MHz	CSTCR_G Series	7MHz	3 Pin	± 0.5%	± 0.2%	50ohm	-	3Pins	-	SMD	-20°C	80°C
CSTCR6M40G55-R0	4242736RL Data Sheet RoHS	MURATA Resonator CSTCR_G Series 6.4 MHz ± 0.5% ± 0.2% 50 ohm	Each (Supplied on Cut Tape) Re-Reel Packaging Options	100+ HK$2.300 500+ HK$2.080 1000+ HK$2.000	Total:HK$230.00 Min: 100 / Mult: 5	6.4MHz	CSTCR_G Series	6.4MHz	3 Pin	± 0.5%	± 0.2%	50ohm	-	3Pins	-	SMD	-20°C	80°C
CSTCR4M00G53-R0	1170428 Data Sheet RoHS	MURATA Resonator Ceramic CSTCR 4 MHz ± 0.5% ± 0.2% 60 ohm	Each (Supplied on Cut Tape) Cut Tape	5+ HK$3.020 10+ HK$2.620 100+ HK$2.270 500+ HK$2.020 1000+ HK$1.980	Total:HK$15.10 Min: 5 / Mult: 5	4MHz	CSTCR	4MHz	3 Pin	± 0.5%	± 0.2%	60ohm	SMD	3Pins	2 mm x 4.5 mm x 1.15 mm	-	-20°C	80°C
CSTLS8M00G53-A0	2443273 Data Sheet RoHS	MURATA RESONATOR CERAMIC 8MHZ THD	Each (Supplied on Cut Tape) Cut Tape	5+ HK$1.610 10+ HK$1.420 100+ HK$1.280 500+ HK$1.170 1000+ HK$1.120	Total:HK$8.05 Min: 5 / Mult: 5	8MHz	-	8MHz	3 Pin	± 0.5%	-	25ohm	-	3Pins	-	Through Hole	-20°C	80°C
CSTCR6M00G53Z-R0	2470365 Data Sheet RoHS	MURATA Resonator Ceramic 6 MHz ± 0.5% ± 0.2%	Each (Supplied on Cut Tape) Cut Tape	5+ HK$3.180 10+ HK$2.790 100+ HK$2.430 500+ HK$2.200 1000+ HK$2.120	Total:HK$15.90 Min: 5 / Mult: 5	6MHz	-	6MHz	3 Pin	± 0.5%	± 0.2%	-	-	3Pins	-	SMD	-40°C	125°C
CSTLS4M00G53-A0	2443271 Data Sheet RoHS	MURATA RESONATOR CERAMIC 4MHZ THD	Each (Supplied on Cut Tape) Cut Tape	5+ HK$1.690 10+ HK$1.480 100+ HK$1.300 500+ HK$1.180 1000+ HK$1.140	Total:HK$8.45 Min: 5 / Mult: 5	4MHz	-	4MHz	3 Pin	± 0.5%	-	30ohm	-	3Pins	-	Through Hole	-20°C	80°C
CSTCR4M00G53Z-R0	2470363 Data Sheet RoHS	MURATA Resonator Ceramic 4 MHz ± 0.5% ± 0.2%	Each (Supplied on Cut Tape) Cut Tape	5+ HK$3.600 10+ HK$3.170 100+ HK$2.750 500+ HK$2.490 1000+ HK$2.400	Total:HK$18.00 Min: 5 / Mult: 5	4MHz	-	4MHz	3 Pin	± 0.5%	± 0.2%	-	-	3Pins	-	SMD	-40°C	125°C
CSTLS10M0G53-A0	2913650 Data Sheet RoHS	MURATA Resonator CERALOCK CSTLS 10 MHz ± 0.5% ± 0.2% 25 ohm	Each	5+ HK$1.800 10+ HK$1.550 100+ HK$1.360 500+ HK$1.230 1000+ HK$1.180	Total:HK$9.00 Min: 5 / Mult: 5	10MHz	CERALOCK CSTLS	10MHz	3 Pin	± 0.5%	± 0.2%	25ohm	-	3Pins	-	Through Hole	-20°C	80°C
