Through Hole Toroidal Inductors

Our range of Through Hole Toroidal Inductors includes these examples from our lineup of manufacturers:

The Abracon ATCA Series low EMI through hole toroidal inductors use low EMI/RFI toroid topology. They feature high saturation current up to 10A and a wide operating temperature range of -40°C to 105°C. Vertical and horizontal orientations optimize EMI/RFI. The toroidal inductors are compatible with low cost through-hole assembly.

Applications include high power switch-mode power supplies, high power LED ballasts, power line filters, solar inverters, white goods, and motor drivers.

The Bourns 2100, 2200, and 2300 Series of low-cost high current through hole toroid inductors are designed for applications like DC-DC converters and EMI filter applications. The products feature low radiation and low core loss with high current capacity, with horizontal or vertical mount options. Operating temperature is -55 to +105°C

The Kemet SHBC and HHBC coils are normal mode chokes with a wide variety of characteristics. These coils are designed with Fe-Si-Al (SHBC) or Fe-Si (HHBC) dust cores and are useful in various fields such as DC/DC converters and differential noise countermeasures.

HHBC applications include switching power supply outlets, DC-DC converters, phase compensation, boost converters, and normal mode noise countermeasures.

The Würth WE-FI leaded toroidal line choke series supports a current loading up to 9A. They feature iron powder cores with low losses, and low magnetic leakage fields. Operating temperature is –25°C to + 125°C. They are perfect for filtering of symmetrical interferences, and are found in voltage transformers and power supplies.

			Price For		Quantity

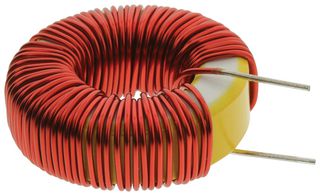

MCAP115018077A-561LU	1864224 Data Sheet RoHS	MULTICOMP PRO INDUCTOR 560UH 15% 2 PINS	Each	1+ HK$23.520 50+ HK$21.530 100+ HK$20.160 250+ HK$18.590 500+ HK$16.910 More Pricing...	Total:HK$23.52 Min: 1 / Mult: 1	MCAP Series	560µH	10A	0.077ohm	± 15%
2300LL-102-V-RC	3373523 Data Sheet RoHS	BOURNS Toroidal Inductor 2300LL Series 1 mH 3.5 A 0.137 ohm ± 15%	Each	1+ HK$34.460 5+ HK$32.070 10+ HK$29.680 20+ HK$28.950 40+ HK$28.220 More Pricing...	Total:HK$34.46 Min: 1 / Mult: 1	2300LL Series	1mH	3.5A	0.137ohm	± 15%
2200HT-220-V-RC	2112804 Data Sheet RoHS	BOURNS JW MILLER Toroidal Inductor High Temp 2200HT Series 22 µH 9.3 A 0.02 ohm ± 15%	Each	1+ HK$33.100 5+ HK$30.280 10+ HK$27.450 20+ HK$26.340 40+ HK$25.220 More Pricing...	Total:HK$33.10 Min: 1 / Mult: 1	2200HT Series	22µH	9.3A	0.02ohm	± 15%
2200HT-220-V-RC	3373517 Data Sheet RoHS	BOURNS Toroidal Inductor 2200HT Series 22 µH 9.3 A 0.02 ohm ± 15%	Each	1+ HK$33.100 5+ HK$30.280 10+ HK$27.450 20+ HK$26.340 40+ HK$25.220 More Pricing...	Total:HK$33.10 Min: 1 / Mult: 1	2200HT Series	22µH	9.3A	0.02ohm	± 15%
74470292	3812774 Data Sheet RoHS	WURTH ELEKTRONIK Toroidal Inductor WE-FI Series 130 µH 3 A 0.09 ohm ± 20%	Each	1+ HK$21.470 5+ HK$20.790 10+ HK$20.100 25+ HK$19.370 50+ HK$18.640 More Pricing...	Total:HK$21.47 Min: 1 / Mult: 1	WE-FI Series	130µH	3A	0.09ohm	± 20%
SHBC13-1R2A0081V	2945417 Data Sheet RoHS	KEMET Toroidal Inductor SHBC Series 81 µH 6 A 0.0247 ohm ± 20%	Each	1+ HK$40.770 30+ HK$34.040 60+ HK$29.230 120+ HK$24.420 510+ HK$22.190 More Pricing...	Total:HK$40.77 Min: 1 / Mult: 1	SHBC Series	81µH	6A	0.0247ohm	± 20%
HHBC8S-0R6A0043V	2945360 Data Sheet RoHS	KEMET Toroidal Inductor HHBC Series 43 µH 2 A 0.0541 ohm ± 20%	Each	1+ HK$20.150 10+ HK$17.310 25+ HK$16.900 50+ HK$16.500 100+ HK$13.680 More Pricing...	Total:HK$20.15 Min: 1 / Mult: 1	HHBC Series	43µH	2A	0.0541ohm	± 20%
SHBC14-1R2A0120V	2945420 Data Sheet RoHS	KEMET Toroidal Inductor SHBC Series 120 µH 8 A 0.0299 ohm ± 20%	Each	1+ HK$81.880 30+ HK$72.380 60+ HK$69.610 120+ HK$29.740 510+ HK$29.150 More Pricing...	Total:HK$81.88 Min: 1 / Mult: 1	SHBC Series	120µH	8A	0.0299ohm	± 20%
PHBC12-1R0A0051V	2945390 Data Sheet RoHS	KEMET Toroidal Inductor PHBC Series 51 µH 5 A 0.028 ohm ± 20%	Each	1+ HK$30.410 40+ HK$29.000 80+ HK$27.580 120+ HK$26.950	Total:HK$30.41 Min: 1 / Mult: 1	PHBC Series	51µH	5A	0.028ohm	± 20%
SHBC10-0R8A0068V	2945411 Data Sheet RoHS	KEMET Toroidal Inductor SHBC Series 68 µH 3 A 0.0423 ohm ± 20%	Each	1+ HK$29.220 10+ HK$23.900 50+ HK$19.830 240+ HK$19.090 720+ HK$16.790 More Pricing...	Total:HK$29.22 Min: 1 / Mult: 1	SHBC Series	68µH	3A	0.0423ohm	± 20%
PHBC12-1R0A0080V	2945391 Data Sheet RoHS	KEMET Toroidal Inductor PHBC Series 80 µH 5 A 0.0356 ohm ± 20%	Each	1+ HK$46.170 40+ HK$30.640 80+ HK$28.380 120+ HK$28.230	Total:HK$46.17 Min: 1 / Mult: 1	PHBC Series	80µH	5A	0.0356ohm	± 20%
PHBC12-1R0A0028V	2945389 Data Sheet RoHS	KEMET Toroidal Inductor PHBC Series 28 µH 5 A 0.0211 ohm ± 20%	Each	1+ HK$43.280 40+ HK$32.550 80+ HK$30.220 120+ HK$27.890 520+ HK$25.830	Total:HK$43.28 Min: 1 / Mult: 1	PHBC Series	28µH	5A	0.0211ohm	± 20%
MCAP115018062A-381MU	1864223 Data Sheet RoHS	MULTICOMP PRO Toroidal Inductor MCAP Series 380 µH 10.5 A 0.07 ohm ± 20%	Each	1+ HK$23.210 50+ HK$21.320 100+ HK$19.950 250+ HK$18.480 500+ HK$16.800 More Pricing...	Total:HK$23.21 Min: 1 / Mult: 1	MCAP Series	380µH	10.5A	0.07ohm	± 20%
MCAP115018047A-221MU	1864222 Data Sheet RoHS	MULTICOMP PRO Toroidal Inductor MCAP Series 220 µH 11 A 0.06 ohm ± 20%	Each	1+ HK$32.240 50+ HK$27.930 100+ HK$25.940 250+ HK$24.050 500+ HK$22.680 More Pricing...	Total:HK$32.24 Min: 1 / Mult: 1	MCAP Series	220µH	11A	0.06ohm	± 20%
MA5172-AE	2457626 Data Sheet RoHS	COILCRAFT Toroidal Inductor Self-Leaded 10 µH 8.2 A 0.026 ohm ± 1%	Each	1+ HK$70.620 3+ HK$66.460 5+ HK$62.300 10+ HK$58.140 20+ HK$54.210 More Pricing...	Total:HK$70.62 Min: 1 / Mult: 1	-	10µH	8.2A	0.026ohm	± 1%
7447025	4065810 Data Sheet RoHS	WURTH ELEKTRONIK Toroidal Inductor WE-FI Series 20 µH 5.7 A 0.02 ohm ± 20%	Each	1+ HK$17.790 10+ HK$17.610 25+ HK$17.420 50+ HK$17.230 100+ HK$17.040 More Pricing...	Total:HK$17.79 Min: 1 / Mult: 1	WE-FI Series	20µH	5.7A	0.02ohm	± 20%
2100HT-101-V-RC	1693387 Data Sheet RoHS	BOURNS JW MILLER HIGH CURRENT INDUCTOR 100UH 4.6A 15%	Each	1+ HK$34.720 5+ HK$31.730 10+ HK$28.730 25+ HK$25.480 50+ HK$24.030 More Pricing...	Total:HK$34.72 Min: 1 / Mult: 1	-	-	-	-	-
MCAP109020040K-101MU	1864215 Data Sheet RoHS	MULTICOMP PRO INDUCTOR 100UH 20% 2 PINS	Each	1+ HK$13.440 50+ HK$12.920 100+ HK$12.500 250+ HK$11.870 500+ HK$9.940 More Pricing...	Total:HK$13.44 Min: 1 / Mult: 1	MCAP Series	100µH	4.3A	0.065ohm	± 20%
PE92108KNL	1209546 Data Sheet RoHS	PULSE ELECTRONICS Toroidal Inductor Vertical KlipMount PE-921 Series 100 µH 3.6 A 0.045 ohm ± 20%	Each	1+ HK$27.110 5+ HK$25.280 10+ HK$23.440 20+ HK$22.800 40+ HK$22.150 More Pricing...	Total:HK$27.11 Min: 1 / Mult: 1	KlipMount PE-921 Series	100µH	3.6A	0.045ohm	± 20%
2324-H-RC	1189587 Data Sheet RoHS	BOURNS JW MILLER TOROIDAL INDUCTOR 1MH 2.4A 15%	Each	1+ HK$30.450 10+ HK$25.140 100+ HK$21.470 500+ HK$18.980 1000+ HK$17.970 More Pricing...	Total:HK$30.45 Min: 1 / Mult: 1	2300 Series	-	-	300mohm	-
SHBC12-1R0A0051V	2945414 Data Sheet RoHS	KEMET Toroidal Inductor SHBC Series 51 µH 5 A 0.028 ohm ± 20%	Each	1+ HK$31.890 40+ HK$21.310 80+ HK$20.010 120+ HK$18.700 520+ HK$17.390 More Pricing...	Total:HK$31.89 Min: 1 / Mult: 1	SHBC Series	51µH	5A	0.028ohm	± 20%
7447033	2082530 Data Sheet RoHS	WURTH ELEKTRONIK Toroidal Inductor Leaded WE-FI Series 68 µH 2 A 0.055 ohm ± 20%	Each	1+ HK$16.510 10+ HK$15.660 25+ HK$15.150 50+ HK$14.630 100+ HK$13.770 More Pricing...	Total:HK$16.51 Min: 1 / Mult: 1	WE-FI Series	68µH	2A	0.055ohm	± 20%
MCAPB105024080A-221MU	1864202 Data Sheet RoHS	MULTICOMP PRO Toroidal Inductor MCAPB Series 220 µH 500 mA 0.16 ohm ± 20%	Each	1+ HK$15.650 50+ HK$14.390 100+ HK$13.440 250+ HK$11.450	Total:HK$15.65 Min: 1 / Mult: 1	MCAPB Series	220µH	500mA	0.16ohm	± 20%
PE-92108KNL	2215921 Data Sheet RoHS	PULSE ELECTRONICS Toroidal Inductor Vertical KlipMount PE-921 Series 100 µH 3.6 A 0.045 ohm ± 20%	Each	1+ HK$27.110 10+ HK$23.440 25+ HK$22.150 50+ HK$20.780 100+ HK$19.410 More Pricing...	Total:HK$27.11 Min: 1 / Mult: 1	KlipMount PE-921 Series	100µH	3.6A	0.045ohm	± 20%
PE-92112KNL	2215971 Data Sheet RoHS	PULSE ELECTRONICS Toroidal Inductor Vertical KlipMount PE-921 Series 100 µH 5 A 0.034 ohm ± 20%	Each	1+ HK$42.070 5+ HK$38.360 10+ HK$34.640 25+ HK$32.960 50+ HK$31.270 More Pricing...	Total:HK$42.07 Min: 1 / Mult: 1	KlipMount PE-921 Series	100µH	5A	0.034ohm	± 20%
