CT4098-50

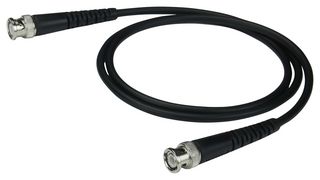

RF / Coaxial Cable Assembly, 19.7 ", 500 mm, RG223/U, BNC Straight Plug, BNC Straight Plug
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CAL TEST ELECTRONICS |
|---|---|
| Manufacturer Part No | CT4098-50Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4531689 |
| Your Part Number |
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$275.110 |
Price for:Each
Minimum: 1
Multiple: 1
HK$275.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CAL TEST ELECTRONICS |
|---|---|
| Manufacturer Part No | CT4098-50Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4531689 |
| Cable Length - Imperial | 19.7" |
| Connector to Connector | BNC Plug to BNC Plug |
| Cable Length - Metric | 500mm |
| Coaxial Cable Type | RG223/U |
| Connector Type A | BNC Straight Plug |
| Connector Type B | BNC Straight Plug |
| Impedance | 50ohm |
| Jacket Colour | Black |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
CT4098-50 is a CT4098 series high quality double shielded BNC male to male coaxial cable assembly on RG223/U coaxial cable. Moulded bend relief boot.
- Frequency range from DC to 1GHz
- 50 ohm impedance
- Maximum VSWR 1.20:1 - DC to 500MHz, 1.70:1 - 500MHz to 1GHz
- 0.8dB/m at 1GHz insertion loss
- 500Vrms voltage rating
- Black PVC cable
- 50cm cable length
Technical Specifications
| Cable Length - Imperial | 19.7" |
|---|---|
| Cable Length - Metric | 500mm |
| Connector Type A | BNC Straight Plug |
| Impedance | 50ohm |
| Product Range | - |
| Connector to Connector | BNC Plug to BNC Plug |
|---|---|
| Coaxial Cable Type | RG223/U |
| Connector Type B | BNC Straight Plug |
| Jacket Colour | Black |
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .272 |
