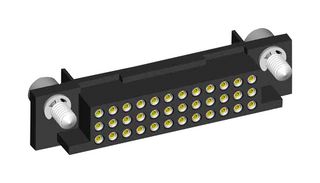

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | M80-7053605Copy |
| Manufacturer Standard Lead Time | 1 weeks |
| Order Code | 1608516 |
| Product Range | Datamate J-Tek M80 |
| Your Part Number |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$233.540 |
| 10+ | HK$186.600 |
| 25+ | HK$177.640 |
| 100+ | HK$172.620 |
| 250+ | HK$166.540 |
| 500+ | HK$157.500 |
Price for:Each
Minimum: 1
Multiple: 1
HK$233.54
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | M80-7053605Copy |
| Manufacturer Standard Lead Time | 1 weeks |
| Order Code | 1608516 |
| Product Range | Datamate J-Tek M80 |
| Product Range | Datamate J-Tek M80 |
| No. of Contacts | 36Contacts |
| Gender | Receptacle(View Associated Connectors) |
| Pitch Spacing | 2mm |
| Contact Termination Type | Crimp |
| No. of Rows | 3 Row |
| Connector Mounting | Panel Mount |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Beryllium Copper |
| SVHC | Lead (27-Jun-2024) |
Product Overview
The Datamate J-Tek M80-7 series 2mm pitch female rectangular fully shrouded Unsealed Connector with replaceable contacts for interconnecting board to board and board to wire. The range covers female connector suitable for crimp or through board termination. The connector is intended for use as a connector in high packing density electronic equipment. The connector is polarised to prevent mis-matching and can be produced with a jackscrew feature as required.
Applications
Industrial
Technical Specifications
| Product Range | Datamate J-Tek M80 |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Crimp |
| Connector Mounting | Panel Mount |
| Contact Material | Beryllium Copper |
| No. of Contacts | 36Contacts |
|---|---|
| Pitch Spacing | 2mm |
| No. of Rows | 3 Row |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (27-Jun-2024) |
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005443 |
