1EDI302XASEVALBOARDTOBO1
Evaluation Board, 1EDI3020AS, 1EDI3021AS, 1EDI3023AS, IGBT Gate Driver
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | 1EDI302XASEVALBOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 4410757 |
| Also Known As | SP005562679 |
| Your Part Number |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$1,119.430 |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | 1EDI302XASEVALBOARDTOBO1Copy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 4410757 |
| Also Known As | SP005562679 |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | 1EDI3020AS, 1EDI3021AS, 1EDI3023AS |
| Kit Application Type | Power Management |
| Application Sub Type | IGBT Gate Driver |
| Kit Contents | Evaluation Board 1EDI3020AS, 1EDI3021AS, 1EDI3023AS |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

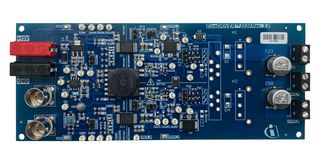

1EDI302XASEVALBOARDTOBO1 is an eval board that has been designed to ease the performance evaluation of EiceDRIVER™ 1EDI302xAS gate driver which is suitable for IGBT based applications. This 1EDI302xAS is a high-voltage IGBT/SiC-MOSFET driver for automotive motor drives with a power above 5KW. The device is based on Infineon's Coreless Transformer (CT) technology, providing galvanic insulation between the low and high-voltage domain. The primary logic of the device supports 5V and 3.3V. The high-voltage domain (secondary side) can drive IGBT/Sic power switches directly or an external booster stage. Short propagation delay and controlled internal tolerances lead to minimal distortion of the PWM signal. The device features a high output stage current of typically 10A. The integrated Miller clamping stage with typically 10A allows unipolar supply of the IGBT/SiC-MOSFET power switch. Suitable for main inverter, DCDC, OBC, Powertrain inverter for CAV and industrial drives applications.
- Product variant: 1EDI3020AS, 1EDI3021AS, 1EDI3023AS
- Easy product performance evaluation to shorten development schedules and accelerate your TTM
- Seamless product evaluation and strong design support via online simulation and evaluation boards
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Evaluation Board 1EDI3020AS, 1EDI3021AS, 1EDI3023AS |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | 1EDI3020AS, 1EDI3021AS, 1EDI3023AS |
|---|---|
| Application Sub Type | IGBT Gate Driver |
| Product Range | - |
