CA-AISG6-METER

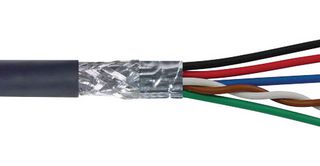

Multicore Cable, Screened, 4 Core, 0.75 mm², 3.28 ft, 1 m
Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerL-COM
Manufacturer Part NoCA-AISG6-METER
Order Code4215920
Cable ShieldingScreened
No. of Cores4Core
Wire Gauge-
Conductor Area CSA0.75mm²
Reel Length (Imperial)3.28ft
Reel Length (Metric)1m
Jacket ColourBlack
No. of Max Strands x Strand Size14 x 0.15mm, 42 x 0.15mm
Conductor MaterialCopper
Jacket MaterialPU
External Diameter8mm
Voltage Rating300V
Product Range-
Technical Specifications
Cable Shielding
Screened
Wire Gauge
-
Reel Length (Imperial)
3.28ft
Jacket Colour
Black
Conductor Material
Copper
External Diameter
8mm
Product Range
-
No. of Cores
4Core
Conductor Area CSA
0.75mm²
Reel Length (Metric)
1m
No. of Max Strands x Strand Size
14 x 0.15mm, 42 x 0.15mm
Jacket Material
PU
Voltage Rating
300V
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85444290
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
