DM320115
Evaluation Board, Curiosity Nano, ATmega4809 MCU, MPLAB X IDE, On-Board Debugger

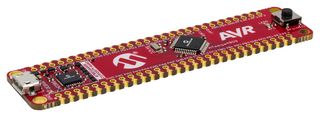

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMICROCHIP
Manufacturer Part NoDM320115Copy
Manufacturer Standard Lead Time14 weeks
Order Code2932048
Your Part Number
24 In Stock
6 more incoming. You can reserve stock now
1 Delivery in 1-2 Business Days(SG stock)
23 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$87.220 |
| 5+ | HK$85.480 |
Price for:Each
Minimum: 1
Multiple: 1
HK$87.22
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview
DM320115 is an ATMEGA4809 Curiosity Nano evaluation kit. This is a hardware platform to evaluate microcontrollers in the megaAVR®0-series Family. This board has the ATmega4809 microcontroller (MCU) mounted. Supported by both MPLAB® X IDE and Atmel Studio 7, the board provides easy access to the features of the ATmega4809 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the ATmega4809.
- ATmega4809 microcontroller
- One yellow user LED and one mechanical user switch
- Footprint for 32.768kHz crystal
- On-board debugger: board identification in Microchip MPLAB® X IDE and Atmel Studio 7
- On-board debugger: one green power and status LED, programming and debugging, CDC, 2 DGI GPIO
- USB powered
- Adjustable target voltage: MIC5353 LDO regulator controlled by the on-board debugger
- 1.8-5.1V output voltage (limited by USB input voltage)
- 500mA maximum output current (limited by ambient temperature and output voltage)
Technical Specifications
Silicon Manufacturer
Microchip
Silicon Family Name
ATmega
Core Sub-Architecture
-
Kit Contents
Curiosity Nano Evaluation Board ATmega4809, On-Board Debugger
SVHC
No SVHC (04-Feb-2026)
No. of Bits
8bit
Core Architecture
AVR
Silicon Core Number
ATmega4809
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.025401
