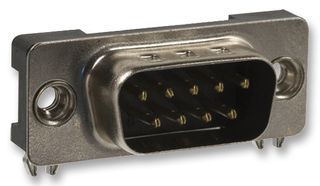

Image is for illustrative purposes only. Please refer to product description.
3,105 In Stock
Need more?
3105 Delivery in 3-4 Business Days(UK stock)
Quantity | Price |
---|---|
1+ | HK$29.550 |
15+ | HK$24.420 |
30+ | HK$23.260 |
60+ | HK$22.150 |
105+ | HK$21.290 |
255+ | HK$20.000 |
510+ | HK$19.040 |
1005+ | HK$18.150 |
2505+ | HK$17.600 |
Price for:Each
Minimum: 1
Multiple: 1
HK$29.55
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNORCOMP
Manufacturer Part No190-009-163R001
Order Code2294311
Product Range190 Series
D Sub Connector TypeStandard
Product Range190 Series
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder
Connector MountingSurface Mount
Contact Material-
Contact Plating-
Connector Body MaterialSteel Body
SVHCLead (27-Jun-2024)
Product Overview
The 190-009-163R001 is a 9-way Male Surface Mount Right Angle D-sub Connector, 190 series, with nickel-plated steel shell gold-plated phosphor bronze contacts, tin-plated solder tail, nickel-plated board locks and nylon 6T insulation. Plug shells have indents to provide grounding and additional retention. Built-in board locks add mechanical stability to PCB.
- Black colour insulator
- High density
- Metal shell for improved shielding
- UL94V-0 Flammability rating
- 5A Current rating
- 300VDC Voltage rating
- 13mΩ Contact resistance
- <gt/>1000mΩ at 500VDC Insulation resistance
- -55 to +105°C Temperature range
Applications
Industrial
Technical Specifications
D Sub Connector Type
Standard
Product Range
190 Series
D Sub Shell Size
DE
Connector Mounting
Surface Mount
Contact Plating
-
SVHC
Lead (27-Jun-2024)
Gender
Plug
No. of Contacts
9Contacts
Contact Termination Type
Solder
Contact Material
-
Connector Body Material
Steel Body
Technical Docs (3)
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0039
