OM13076UL

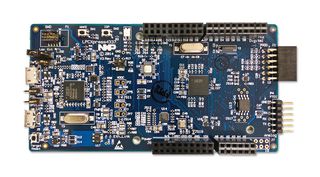

Development Board, LPC18S37 LPCXpresso MCU, On-Board USB Debug Probe
Image is for illustrative purposes only. Please refer to product description.
ManufacturerNXP
Manufacturer Part NoOM13076ULCopy
Manufacturer Standard Lead Time17 weeks
Order Code2465060
Your Part Number
3 In Stock
Need more?
3 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$303.730 |
Price for:Each
Minimum: 1
Multiple: 1
HK$303.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNXP
Manufacturer Part NoOM13076ULCopy
Manufacturer Standard Lead Time17 weeks
Order Code2465060
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameLPC1800
Core ArchitectureARM
Core Sub-ArchitectureCortex-M3
Silicon Core NumberLPC18S37
Kit ContentsDev Board LPC18S37
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
OM13076UL is an LPCXpresso18S37 development board for LPC18S37 (Cortex‑M3 up to 180MHz). The LPCXpresso™ is a low-cost development platform available from NXP®, supporting NXP's Arm-based microcontrollers. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.
- On‑board Ethernet PHY (signals on expansion headers)
- High‑speed USB A/B for host/device operation
- FTDI UART connector and UART bridge
- Arduino UNO Rev3 and Pmod expansion headers
- Tri‑colour LED, target RESET, ISP and WAKE buttons
- A7001CM secure element on board
- 8Mb Macronix Quad‑SPI flash
- Supports external debug probes
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
LPC1800
Core Sub-Architecture
Cortex-M3
Kit Contents
Dev Board LPC18S37
SVHC
No SVHC (17-Jan-2022)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
LPC18S37
Product Range
-
Technical Docs (3)
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.097976
