                      SFH 203

                      Photo Diode, 20° Half Sensitivity, 1nA Dark Current, 850nm, T-1 3/4 (5mm)-2 Pins

                      AMS OSRAM GROUP SFH 203

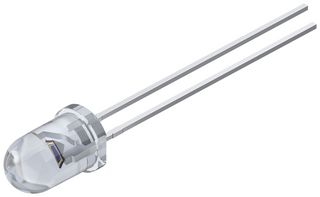

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerAMS OSRAM GROUP
                      Manufacturer Part NoSFH 203
                      Order Code2981686
                      Also Known AsQ62702P0955
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      3,438 In Stock

                      Need more?

                      3438 Delivery in 3-4 Business Days(UK stock)
                      QuantityPrice
                      5+HK$6.140
                      10+HK$4.540
                      25+HK$3.920
                      50+HK$3.300
                      100+HK$2.670
                      150+HK$2.620
                      200+HK$2.570
                      250+HK$2.510
                      Price for:Each
                      Minimum: 5
                      Multiple: 5
                      HK$30.70
                      Add Part No. / Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerAMS OSRAM GROUP
                      Manufacturer Part NoSFH 203
                      Order Code2981686
                      Also Known AsQ62702P0955
                      Technical Datasheet

                      Data Sheet

                      No. of Pins2Pins
                      Diode Case StyleT-1 3/4 (5mm)
                      Wavelength of Peak Sensitivity850nm
                      Angle of Half Sensitivity ±20°
                      Dark Current1000pA
                      Operating Temperature Min-40°C
                      Operating Temperature Max100°C
                      Product Range-
                      Automotive Qualification Standard-
                      MSL-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      SFH 203 is a radial T1 3/4 silicon PIN photodiode LED. Applications include access control and security, appliances and tools.

                      • 5mm LED plastic clear epoxy package
                      • ESD: 2kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
                      • Short switching time (typ. 5ns)
                      • 80µA typ photocurrent at Ev = 1000 lx; Std. Light A; VR = 5V
                      • Operating temperature range from -40°C to 100°C
                      • Reverse voltage is 50V max at t ≤ 2min; TA = 25°C
                      • Total power dissipation is 150mW max at TA = 25°C
                      • Wavelength of max sensitivity is 850nm typ at TA = 25°C
                      • Forward voltage is 1.3V typ at IF = 100mA; E = 0, TA = 25°C
                      • Rise time/fall time is 0.005µs typ at VR = 20V; RL = 50 ohm; λ = 850nm

                      Technical Specifications

                      No. of Pins

                      2Pins

                      Wavelength of Peak Sensitivity

                      850nm

                      Dark Current

                      1000pA

                      Operating Temperature Max

                      100°C

                      Automotive Qualification Standard

                      -

                      SVHC

                      No SVHC (21-Jan-2025)

                      Diode Case Style

                      T-1 3/4 (5mm)

                      Angle of Half Sensitivity ±

                      20°

                      Operating Temperature Min

                      -40°C

                      Product Range

                      -

                      MSL

                      -

                      Technical Docs (2)

                      Product Change Notice EN

                      Technical Data Sheet EN

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Malaysia
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85414900
                      US ECCN:EAR99
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.00031
