M83519/1-3 (S01-03-R)

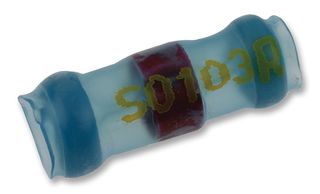

Solder Sleeve, Heat Shrinkable, Terminator, 4.3 mm, Blue (Transparent)
Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoM83519/1-3 (S01-03-R)
Order Code2293343
Also Known As775210-000, S01-03-R, M83519/1-3, 2-1196036-5
8,456 In Stock
Need more?
8456 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$13.990 |
| 15+ | HK$13.740 |
| 50+ | HK$13.550 |
Price for:Each
Minimum: 1
Multiple: 1
HK$13.99
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoM83519/1-3 (S01-03-R)
Order Code2293343
Also Known As775210-000, S01-03-R, M83519/1-3, 2-1196036-5
Connector TypeTerminator
Internal Diameter4.3mm
Insulator ColourBlue (Transparent)
Insulator MaterialPVDF (Polyvinylidene Fluoride)
Insulator Length16.5mm
Wire Gauge-
Product Range-
Product Overview
M83519/1-3 (S01-03-R) is a solder sleeve terminator designed to make an environment resistant shield terminations on cables. The insulation sleeve is heat-shrinkable and is made of radiation cross-linked modified polyvinylidene fluoride. It is designed to make an environment resistant shield termination on cables.
- 125°C jacket rating
- Qualified to M83519/1-3
- 4.3mm product diameter and 16.5±1.75mm product length
- Heat-shrinkable, transparent blue, radiation cross-linked polyvinylidene fluoride insulation sleeve
- Solder : TYPE Sn63 per ANSI-J-STD-006
- Flux : TYPE Sn63 per ANSI-J-STD-006
- Thermal indicator: colour change: violet to colourless
- Meltable rings : environment resistant thermoplastic, colour: blue
Technical Specifications
Connector Type
Terminator
Insulator Colour
Blue (Transparent)
Insulator Length
16.5mm
Product Range
-
Internal Diameter
4.3mm
Insulator Material
PVDF (Polyvinylidene Fluoride)
Wire Gauge
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85469090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000477
