SLSTK3301A
Development Kit, EFM32 Tiny Gecko MCU Starter Kit, On Board J-Link Debugger
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | SILICON LABS |
|---|---|
| Manufacturer Part No | SLSTK3301ACopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 3105877 |
| Your Part Number |
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$813.780 |
Price for:Each
Minimum: 1
Multiple: 1
HK$813.78
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SILICON LABS |
|---|---|
| Manufacturer Part No | SLSTK3301ACopy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 3105877 |
Product Overview

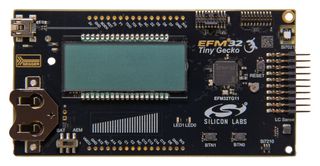

EFM32 Tiny Gecko S1, TG11 starter Kit, an excellent starting point to get familiar with the EFM32™ Tiny Gecko 11 32-bit microcontrollers. The starter kit contains sensors and peripherals demonstrating some of the MCU's many capabilities and can serve as a starting point for application development. The Tiny Gecko 11 features an on-board SEGGER J-Link debugger and an Advanced Energy Monitoring system allowing to program, debug and perform real-time current profiling of application without using external tools.
- EFM32TG11B520F128GM80 MCU with 128KB flash and 32KB RAM
- Advanced energy monitoring system for precise current tracking
- Integrated segger J-Link USB debugger/emulator with debug out functionality
- 256 segment LCD
- 2 user buttons, 2 user RGB LEDs and a touch slider
- Relative humidity sensor, magnetic Hall Effect sensor and inductive-capacitive metal sensor
- 20 pin expansion header
- Breakout pads for easy access to I/O pins
- Power sources include USB and coin cell battery
- Supported by Simplicity Studio
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Norway Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .003 |
