NE556N
Precision Timer IC, Timing Microseconds to Hours, TTL, Astable, Monostable, 4.5 V to 16 V, DIP-14

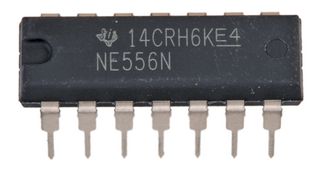

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TEXAS INSTRUMENTS |
|---|---|
| Manufacturer Part No | NE556NCopy |
| Order Code | 3121196 |
| Your Part Number |
No Longer Stocked
Product Information
| Manufacturer | TEXAS INSTRUMENTS |
|---|---|
| Manufacturer Part No | NE556NCopy |
| Order Code | 3121196 |
| Frequency | 500kHz |
| Supply Voltage Min | 4.5V |
| Supply Voltage Max | 16V |
| Digital IC Case | DIP |
| IC Case / Package | DIP |
| No. of Pins | 14Pins |
| Product Range | - |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| MSL | - |
| SVHC | No SVHC (27-Jun-2018) |
Product Overview
The NE556N from Texas Instruments is a device that provides two independent timing circuits of the NE556N type in each package. These circuits can be operated in the astable or the monostable mode with external resistor-capacitor (RC) timing control. The basic timing provided by the RC time constant can be controlled actively by modulating the bias of the control-voltage input.
- Two precision timing circuits per package
- TTL-Compatible output can sink or source up to 150 mA
