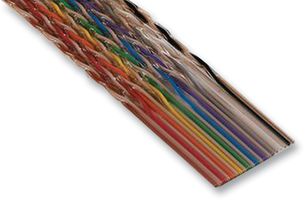

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 1700/14SFCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1610276 |
| Product Range | 1700 Series |
| Your Part Number | |
| Technical Datasheet |
3 In Stock
10 more incoming. You can reserve stock now
3 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$1,645.180 |
| 5+ | HK$1,638.270 |
Price for:1 Reel: (100ft/30.5m)
Minimum: 1
Multiple: 1
HK$1,645.18
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 1700/14SFCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1610276 |
| Product Range | 1700 Series |
| Technical Datasheet | |
| Cable Shielding | Unscreened |
| No. of Cores | 14Core |
| Wire Gauge | 28AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 100ft |
| Reel Length (Metric) | 30.5m |
| Jacket Colour | Multi-coloured |
| Cable Width | 17.8mm |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Pitch Spacing | 1.27mm |
| Voltage Rating | 300V |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| Ribbon Cable Type | Twisted Pair to Flat Ribbon Cable |
| Product Range | 1700 Series |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The 1700 series unshielded twisted pair Flat Cable with tinned stranded copper conductor and a PVC insulator. It can be mass terminated to a broad line of IDC connectors.
- CPR: Not Yet Qualified
- Wires are colour-coded for easy identification
- Provides reduced crosstalk in balanced drive applications
- 28AWG Stranded wire provides flexibility and extended product life
Applications
Computers & Computer Peripherals
Notes
This is Splice Free (SF) cable, indicating that the entire cable length of a packaging unit consists of one continuous piece.
Technical Specifications
| Cable Shielding | Unscreened |
|---|---|
| Wire Gauge | 28AWG |
| Reel Length (Imperial) | 100ft |
| Jacket Colour | Multi-coloured |
| No. of Max Strands x Strand Size | 7 x 36AWG |
| Voltage Rating | 300V |
| Jacket Material | PVC |
| Product Range | 1700 Series |
| No. of Cores | 14Core |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | 30.5m |
| Cable Width | 17.8mm |
| Pitch Spacing | 1.27mm |
| Conductor Material | Tinned Copper |
| Ribbon Cable Type | Twisted Pair to Flat Ribbon Cable |
| SVHC | No SVHC (17-Dec-2014) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 1.115383 |
