3414-6600

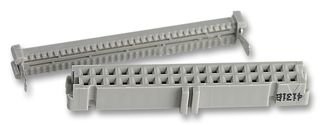

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 34 Contacts, Cable Mount
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3414-6600Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 468058 |
| Product Range | 3000 Series |
| Also Known As | 7100251670, GTIN UPC EAN: 00054007336631 |
| Your Part Number | |
| Technical Datasheet |
337 In Stock
721 more incoming. You can reserve stock now
337 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$61.300 |
| 10+ | HK$54.500 |
| 100+ | HK$43.610 |
| 250+ | HK$21.250 |
| 500+ | HK$20.830 |
| 1000+ | HK$20.400 |
Price for:Each
Minimum: 1
Multiple: 1
HK$61.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3414-6600Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 468058 |
| Product Range | 3000 Series |
| Also Known As | 7100251670, GTIN UPC EAN: 00054007336631 |
| Technical Datasheet | |
| IDC Connector Type | IDC Receptacle |
| Contact Gender | Female |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2 Row |
| No. of Contacts | 34Contacts |
| Connector Mounting | Cable Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Product Range | 3000 Series |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
The 3414-6600 is a 34-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has open end cover, military polarization with centerbump and no strain relief.
- Grey colour
- Open or closed end covers available
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- 1 x 10⁹Ω at 500VDC Insulation resistance
Applications
Industrial
Technical Specifications
| IDC Connector Type | IDC Receptacle |
|---|---|
| Pitch Spacing | 2.54mm |
| No. of Contacts | 34Contacts |
| Contact Material | Copper Alloy |
| Product Range | 3000 Series |
| Contact Gender | Female |
|---|---|
| No. of Rows | 2 Row |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (15-Jan-2018) |
Technical Docs (3)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004 |
