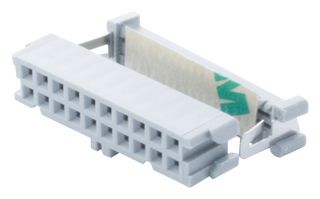

3421-7600
IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 20 Contacts, Cable Mount
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3421-7600Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2672356 |
| Product Range | 3000 Series |
| Also Known As | GTIN UPC EAN: 00054007336532 80610121073 |
| Your Part Number | |
| Technical Datasheet |
2,520 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 10+ | HK$34.780 |
| 100+ | HK$29.570 |
| 250+ | HK$27.380 |
| 500+ | HK$26.060 |
| 1000+ | HK$24.830 |
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3421-7600Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2672356 |
| Product Range | 3000 Series |
| Also Known As | GTIN UPC EAN: 00054007336532 80610121073 |
| Technical Datasheet | |
| IDC Connector Type | IDC Receptacle |
| Contact Gender | Female |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2 Row |
| No. of Contacts | 20Contacts |
| Connector Mounting | Cable Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Product Range | 3000 Series |
| SVHC | No SVHC (20-Jun-2016) |
Alternatives for 3421-7600
1 Product Found
Product Overview
The 3421-7600 is a 20-way 2-row 0.100 x 0.100-inch Wire-to-board Socket for 0.050-inch pitch cable with gold-plated copper contacts. This 3000 series socket comes with glass filled polyester (PBT) insulation and accommodates 28/26AWG solid and stranded wire. It has closed end cover (for end cable termination), military polarization with centerbump and no strain relief. The wire mount socket mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.
- Grey color
- Industry standard IDC socket
- Positive locking metal "J" clips provide high cover retention
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
Applications
Industrial
Technical Specifications
| IDC Connector Type | IDC Receptacle |
|---|---|
| Pitch Spacing | 2.54mm |
| No. of Contacts | 20Contacts |
| Contact Material | Copper Alloy |
| Product Range | 3000 Series |
| Contact Gender | Female |
|---|---|
| No. of Rows | 2 Row |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (20-Jun-2016) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (20-Jun-2016) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004944 |
