3452-6616

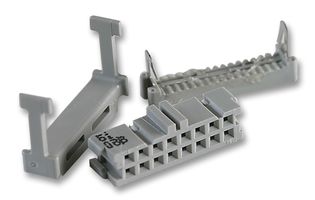

IDC Connector, IDC Receptacle, Female, 2.54 mm, 2 Row, 16 Contacts, Cable Mount
1,920 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | HK$37.550 |
| 10+ | HK$31.920 |
| 25+ | HK$29.920 |
| 50+ | HK$28.490 |
| 100+ | HK$27.130 |
| 300+ | HK$25.110 |
| 600+ | HK$23.900 |
| 1200+ | HK$22.770 |
| 2700+ | HK$21.510 |
Product Information
Product Overview
The 3452-6616 is a 16-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has open end cover, military polarization with center bump and 16-contacts for plastic strain relief. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.
- Grey colour
- Availability of pull tab to facilitate proper unplugging
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- 1 x 10⁹Ω at 500VDC Insulation resistance
Applications
Industrial
Technical Specifications
IDC Receptacle
2.54mm
16Contacts
Copper Alloy
3000 Series
Female
2 Row
Cable Mount
Gold Plated Contacts
No SVHC (16-Jul-2019)
Technical Docs (2)
Alternatives for 3452-6616
2 Products Found
Associated Products
6 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
