| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 8125/10Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2301971 |
| Also Known As | 7000057971 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$2,429.300 |
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 8125/10Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2301971 |
| Also Known As | 7000057971 |
| Technical Datasheet | |
| Cable Shielding | Unscreened |
| No. of Cores | 10Core |
| Wire Gauge | 24AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 100ft |
| Reel Length (Metric) | 30.48m |
| Jacket Colour | Grey |
| Cable Width | 24.59mm |
| No. of Max Strands x Strand Size | 7 x 32AWG |
| Pitch Spacing | 2.54mm |
| Voltage Rating | 300V |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| Ribbon Cable Type | Flat Ribbon Cable |
| Product Range | - |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview

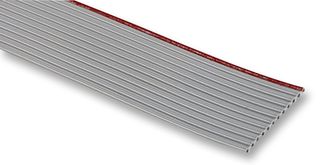

8125/10 is an 8125 series .100" 24AWG stranded, PVC round conductor flat cable. Designed for power applications requiring higher current carrying capability. It delivers optimal performance for applications requiring a higher current carrying capability. Its excellent power transmission capabilities make it ideal for various industries. With size 24AWG tinned stranded copper wire, it offers flexibility and extended cable life. The individually insulated conductors are laminated to a PVC backing, which can be zipped apart for branching or discrete terminations, providing flexibility and convenience in installation.
- Standard version, 10 conductors
- 100ft length
- 24AWG tinned stranded copper wire provides flexibility and extended product life
- Polyvinyl chloride (PVC) insulation, dark grey wires
- Voltage rating of USA: 300V, Canada: 150V, EU: <lt/>50V
- Insulation resistance of <gt/> 1 × 10^10 ohm/10ft (3m)
- Characteristic impedance of 136ohm (unbalanced)
- Temperature rating is -20°C to +105°C, Canada: -20°C to +80°C
- Excellent power transmission capabilities make it ideal for various industries
- Provides reliability and efficiency
Notes
This is Non-Splice Free Cable. The entire cable length of one packaging unit is achieved by several cable sections without a continuous electrical & mechanical connection.
Technical Specifications
| Cable Shielding | Unscreened |
|---|---|
| Wire Gauge | 24AWG |
| Reel Length (Imperial) | 100ft |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 32AWG |
| Voltage Rating | 300V |
| Jacket Material | PVC |
| Product Range | - |
| No. of Cores | 10Core |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | 30.48m |
| Cable Width | 24.59mm |
| Pitch Spacing | 2.54mm |
| Conductor Material | Tinned Copper |
| Ribbon Cable Type | Flat Ribbon Cable |
| SVHC | No SVHC (15-Jan-2018) |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 8.0285 |
