| Manufacturer | 4D SYSTEMS |
|---|---|
| Manufacturer Part No | ULCD-43PTCopy |
| Order Code | 2454548 |
| Product Range | TUK SGACK902S Keystone Coupler |
| Your Part Number | |
| Technical Datasheet |
Product Information
| Manufacturer | 4D SYSTEMS |
|---|---|
| Manufacturer Part No | ULCD-43PTCopy |
| Order Code | 2454548 |
| Product Range | TUK SGACK902S Keystone Coupler |
| Technical Datasheet | |
| Resolution | 480 x 272 |
| Display Appearance | RGB |
| Logic Voltage | 5V |
| Interface Type | UART, I2C |
| Font Set | - |
| Display Mode | - |
| LCD Display Type | TFT |
| Module Size | 120mm x 67.3mm |
| Operating Temperature Min | -15°C |
| Operating Temperature Max | 65°C |
| Display Construction | Module |
| Backlighting Colour | - |
| Product Range | TUK SGACK902S Keystone Coupler |
| SVHC | No SVHC (25-Jun-2020) |
Product Overview

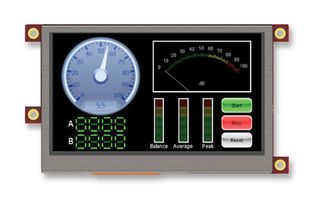

The ULCD-43PT is a 4.3-inch micro LCD -TFT intelligent graphic Display Module that harnesses the power to deliver a diverse range of features in a single unit. Embedded at the heart of the design is the PICASO processor which is driven by a highly optimized virtual core engine, EVE (extensible virtual engine). An extensive range of hardware and software peripherals have been integrated into the design, to give the user freedom to adapt the module to suit almost any application. Features includes a 4.3-inch TFT 480 x 272 touch screen display, audio and micro-SD card connector, an expansion port along with a series of GPIO, I²C pins and serial communications. It serves as the perfect solution to be deployed at the forefront of any product design, requiring a brilliance of colour, animation or images on a 4.3-inch widescreen display.
- 480 x 272 QVGA resolution, RGB 65K true to life colours, TFT screen
- P - Non-touch
- PT - 4-wire resistive touch
- PCT - Capacitive touch
- 8 x 16-bit Timers with 1ms resolution
- DOS compatible file access (FAT16 format) as well as low level access to card memory
- Display full colour images, animations, icons and video clips
- Supports all available Windows fonts and characters
- Resistive touch version
Applications
Audio, Imaging, Video & Vision
Technical Specifications
| Resolution | 480 x 272 |
|---|---|
| Logic Voltage | 5V |
| Font Set | - |
| LCD Display Type | TFT |
| Operating Temperature Min | -15°C |
| Display Construction | Module |
| Product Range | TUK SGACK902S Keystone Coupler |
| Display Appearance | RGB |
|---|---|
| Interface Type | UART, I2C |
| Display Mode | - |
| Module Size | 120mm x 67.3mm |
| Operating Temperature Max | 65°C |
| Backlighting Colour | - |
| SVHC | No SVHC (25-Jun-2020) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (25-Jun-2020) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .079 |
