15,017 In Stock
Need more?
336 Delivery in 1-2 Business Days(SG stock)
13891 Delivery in 3-4 Business Days(UK stock)
790 Delivery in 4-5 Business Days(US stock)
| Quantity | Price |
|---|---|
| 5+ | HK$6.720 |
| 50+ | HK$5.290 |
| 250+ | HK$4.680 |
| 500+ | HK$4.380 |
| 1500+ | HK$4.190 |
| 3000+ | HK$3.440 |
Price for:Each (Supplied on Cut Tape)
Minimum: 5
Multiple: 5
HK$33.60
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABRACON
Manufacturer Part NoABS13-32.768KHZ-T
Order Code1611822
Product RangeABS13
Technical Datasheet
Frequency Nom32.768kHz
Crystal CaseSMD, 6.9mm x 1.4mm
Frequency Stability + / --
Load Capacitance12.5pF
Frequency Tolerance + / -20ppm
Product RangeABS13
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCLead (08-Jul-2021)
Product Overview

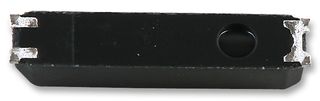

The ABS13-32.768KHZ-T is a 6.9 x 1.4 x 1.3mm 20ppm surface-mount low profile Crystal features plastic with embedded heat resistant crystal in cylinder. The ABS13 series crystal for use with the wireless communications, PDA and palm pilots, wide range in communication, measuring equipment and industrial applications.
- 65kΩ Maximum equivalent series resistance
- 1µW Maximum drive level
- 500MΩ at 100VDC Minimum insulation resistance
Applications
Clock & Timing, Communications & Networking, Test & Measurement, Commercial, Industrial, Wireless
Technical Specifications
Frequency Nom
32.768kHz
Frequency Stability + / -
-
Frequency Tolerance + / -
20ppm
Operating Temperature Min
-40°C
SVHC
Lead (08-Jul-2021)
Crystal Case
SMD, 6.9mm x 1.4mm
Load Capacitance
12.5pF
Product Range
ABS13
Operating Temperature Max
85°C
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85416000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (08-Jul-2021)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000155
