AEACBD059015-C3GSW
RF Antenna, Combo, GPS/GSM/WiFi, 2.4 GHz to 2.4835 GHz, 3 dBi, Linear, Magnetic

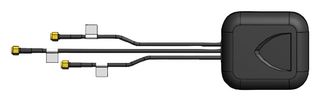

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$416.020 |
| 5+ | HK$401.100 |
| 10+ | HK$386.180 |
| 50+ | HK$214.220 |
| 100+ | HK$213.660 |
Price for:Each
Minimum: 1
Multiple: 1
HK$416.02
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABRACON
Manufacturer Part NoAEACBD059015-C3GSW
Order Code2931533
Technical Datasheet
Frequency Min2.4GHz
Frequency Max2.4835GHz
Gain3dBi
VSWR2
Input Impedance50ohm
Product Overview
AEACBD059015-C3GSW is a AEAC series GPS/GSM/Wi-Fi combinational antenna. Typical applications include telematics, smart meter, transportation, remote monitoring, IoT and M2M applications.
- Active GPS with integrated LNA
- 2G/3G band support and 2.4GHz Wi-Fi
- Circular polarization and magnetic mounting
- 1575.42±1MHz (GPS), 824-960MHz/1710-2170MHz (GSM) and 2400 to 2483.5MHz (Wi-Fi) frequency range
- 1.5 VSWR (GPS), 2 VSWR (GSM) and 2 VSWR WI-FI
- 2.2 to 5VDC LNA supply voltage and 5 to 15mA LAN current consumption (GPS antenna)
- RHCP polarization model (GPS antenna) and linear polarization (GSM and Wi-Fi antenna)
- 50 ohm/2dBi GSM, 50 ohm/2dBic GPS and 50 ohm/3dBi (Wi-Fi) impedance/ gain
- SMA male, RG174 cable type, magnetic mounting, ABS material
- Up to 95% relative humidity and IP65 to IP67 (exclude cable outlet) ingress protection
Technical Specifications
Frequency Min
2.4GHz
Gain
3dBi
Input Impedance
50ohm
Frequency Max
2.4835GHz
VSWR
2
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85177900
US ECCN:5A991.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0001
