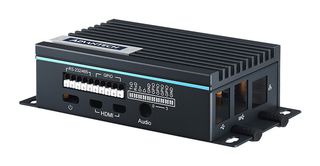

UNO-220-P4N1AE

UNO-220-P4N1AE is a industrial Raspberry Pi 4 HAT gateway kit. It is designed for customers using Raspberry Pi (RPi) single-board computers (SBCs) in unique IoT applications. Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; the UNO-220 industrial-grade chassis transforms RPi 4 into an intelligent gateway. UNO-220 features pre-finished mounting holes and attachment screws enabling plug-and-play assembly with separately purchased RPi 4 SBCs. This system provides developers with a complete RPi-ready industrial-grade gateway kit ideal for rapid prototyping and mass deployment.

• Industrial kit with battery-backed RTC chip for Raspberry Pi
• Tiny size for RPi-based IoT solution (100 x 70 x 33mm)
• Industrial grade I/O board utilizing RS232/485 and GPIO for flexible expansion
• Battery-backed RTC chip for keeping the track of time
• OS allows RPi to identify UNO-220 and automatically configure GPIOs and drivers for the board
• Supports wall-mount and DIN rail installation for industrial applications
• Supports TPM hardware security upon request

Contents

Industrial Raspberry Pi gateway kit with 1x RS232/485, 4x GPIO, 8GB SD card, Raspbian OS.

Notes

RPi 4 SBC sold separately.
