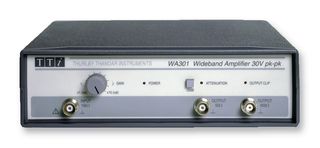

WA301

The WA301 is a DC to 1MHz amplifier with a maximum output (e.m.f.) of 30 volts peak to peak from a 50Ω source impedance. A 600Ω output is also provided. The unit can provide up to 15 volts peak to peak into a 50Ω load and can drive up to 300mA peak into a low impedance or short circuit. Fully variable gain between x1 and x10 is provided by a rotary vernier with calibrated end stops. A -20dB output attenuator is also incorporated. An "output clip" LED is provided to warn if the output amplitude exceeds ±15V.

• Extends the output range of function generators
• 30 Volts peak to peak output swing
• DC to 1MHz bandwidth
• High impedance input, 0dB to +20dB gain
• 50 Ohm and 600 Ohm outputs
• 20dB switchable output attenuator
• Fully protected output

Applications

Sensing & Instrumentation, Signal Processing, Test & Measurement

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
