2-111196-0

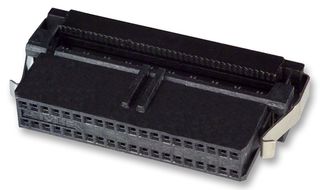

IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row, 40 Contacts, Cable Mount
40 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | HK$116.560 |
| 10+ | HK$105.630 |
| 25+ | HK$91.000 |
| 40+ | HK$87.380 |
| 120+ | HK$82.530 |
| 280+ | HK$81.960 |
| 520+ | HK$79.820 |
| 1000+ | HK$77.270 |
Product Information
Product Overview
The AMPMODU System 50 series Connector includes a wide variety of high density board-to-board (thru-hole and surface-mount) and cable-to-board connectors. The AMPMODU System 50 is composed of one and two-row receptacles and post headers on 0.050x0.100-inch (1.27x2.54mm) spacing between contacts for extreme density and efficient use of printed circuit board area. AMPMODU System 50 receptacles and header assemblies can be categorized in three groups - board-mount headers, board-mount receptacles and cable-to-board receptacles. Receptacle contacts and mating 0.0150inch (0.38mm) square posts are formed from high conductivity copper alloy and are selectively plated with gold to promote higher performance and reliability. Board-mounted thru-hole post headers and receptacle connectors are available for right-angle and vertical mating configurations. Surface-mounted connectors are available in vertical, double row styles for parallel stacking applications.
Applications
Industrial
Technical Specifications
IDC Receptacle
1.27mm
40Contacts
Copper Alloy
AMPMODU System 50 Series
Female
2 Row
Cable Mount
Gold Plated Contacts
No SVHC (23-Jan-2024)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
