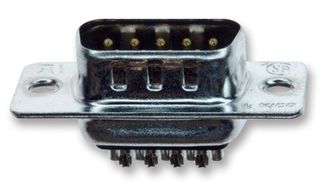

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 5-747904-2Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 1138240 |
| Product Range | AMPLIMITE HDP-20 |
| Your Part Number | |
| Technical Datasheet |
5,862 In Stock
Need more?
248 Delivery in 1-2 Business Days(SG stock)
5,614 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$46.550 |
| 10+ | HK$39.580 |
| 100+ | HK$33.640 |
| 250+ | HK$31.530 |
| 500+ | HK$31.170 |
| 1000+ | HK$30.550 |
Price for:Each
Minimum: 1
Multiple: 1
HK$46.55
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 5-747904-2Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 1138240 |
| Product Range | AMPLIMITE HDP-20 |
| Technical Datasheet | |
| D Sub Connector Type | Standard |
| Gender | Plug(View Associated Connectors) |
| Product Range | AMPLIMITE HDP-20 |
| No. of Contacts | 9Contacts |
| D Sub Shell Size | DE |
| Contact Termination Type | Solder Cup |
| Connector Mounting | Cable Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Connector Body Material | Steel Body |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The 5-747904-2 from TE Connectivity is an AMPLIMITE D sub plug connector with 9 positions. It has grounding indents and mating connector lock.
- Steel shell with tin plating
- Black colour thermoplastic housing
- Contact mating area plating material is gold flash
- Contact base material is phosphor bronze
- Solder tail contact plating material is tin-copper over nickel
- Solder cup contact configuration
- Straight mounting angle
- UL94 V-0 flammability rating
- Solder termination to wire/cable
Applications
Industrial
Technical Specifications
| D Sub Connector Type | Standard |
|---|---|
| Product Range | AMPLIMITE HDP-20 |
| D Sub Shell Size | DE |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Gender | Plug |
|---|---|
| No. of Contacts | 9Contacts |
| Contact Termination Type | Solder Cup |
| Contact Material | Phosphor Bronze |
| Connector Body Material | Steel Body |
Alternatives for 5-747904-2
6 Products Found
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004536 |
