17EHD078SAA000
D Sub Connector, HD78, High Density, Receptacle, 17EHD, 78 Contacts, DD, Solder
2,400 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | HK$65.020 |
| 10+ | HK$55.280 |
| 40+ | HK$50.130 |
| 80+ | HK$47.730 |
| 120+ | HK$46.390 |
| 280+ | HK$43.700 |
| 520+ | HK$41.840 |
| 1000+ | HK$39.950 |
Product Information
Product Overview

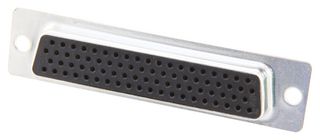

The 17EHD078SAA000 is a 78-position D-sub Connector, 17EHD series, gold flash over nickel-plated copper alloy contacts, 0.120-inch (3.05mm) clear hole panel mounting and solder cup termination, socket (female)-type contact. The high density D-subminiature connector complement Amphenol’s extensive D-subminiature connector line. This line of connector offers many superior features and high performance level. A cable mount version with solder terminations is also available, which can be combined with Amphenol’s standard line of shielded or unshielded backshells.
- Tin-plated steel shell
- UL94V-0 black glass-filled thermoplastic dielectric
- 3A Maximum current rating per contact
- 125VAC Voltage rating
- 1000VAC Minimum dielectric withstanding voltage
- 5000MΩ Minimum insulation resistance
- 15mΩ Maximum contact resistance
Applications
Communications & Networking, Industrial
Technical Specifications
High Density
17EHD
DD
Through Hole Mount
Gold Plated Contacts
No SVHC (25-Jun-2020)
Receptacle
78Contacts
Solder
Copper Alloy
Steel Body
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
RoHS
RoHS
