17EHD015PAA000

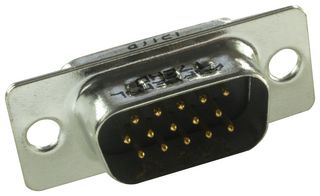

D Sub Connector, High Density, Plug, 17EHD, 15 Contacts, DE, Solder Cup
40 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | HK$18.110 |
| 10+ | HK$15.420 |
| 25+ | HK$14.450 |
| 50+ | HK$13.760 |
| 100+ | HK$13.100 |
| 250+ | HK$12.880 |
Product Information
Product Overview
The 17EHD015PAA000 is a 15-position D-sub Connector, 17EHD series, gold flash over nickel-plated copper alloy contacts, 0.120-inch (3.05mm) clear hole panel mounting and solder cup termination, pin (male)-type contact. The high density D-subminiature connector complement Amphenol’s extensive D-subminiature connector line. This line of connector offers many superior features and high performance level. A cable mount version with solder terminations is also available, which can be combined with Amphenol’s standard line of shielded or unshielded backshells.
- Tin-plated steel shell
- UL94V-0 black glass-filled thermoplastic dielectric
- 3A Maximum current rating per contact
- 125VAC Voltage rating
- 1000VAC Minimum dielectric withstanding voltage
- 5000MΩ Minimum insulation resistance
- 15mΩ Maximum contact resistance
Applications
Communications & Networking, Industrial
Technical Specifications
High Density
17EHD
DE
Cable Mount
Gold Plated Contacts
No SVHC (25-Jun-2020)
Plug
15Contacts
Solder Cup
Copper Alloy
Steel Body
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
