MSX360-1A-C0004-ERA360-05K
Joystick Position Sensor, Miniature, Analogue, 5V Supply, 360°, Rotatable, Wire Lead, MSX-360 Series

| Manufacturer | AMPHENOL PIHER SENSORS AND CONTROLS |
|---|---|
| Manufacturer Part No | MSX360-1A-C0004-ERA360-05KCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4458486 |
| Product Range | MSX360 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$176.400 |
| 10+ | HK$158.460 |
| 25+ | HK$155.300 |
Product Information
| Manufacturer | AMPHENOL PIHER SENSORS AND CONTROLS |
|---|---|
| Manufacturer Part No | MSX360-1A-C0004-ERA360-05KCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4458486 |
| Product Range | MSX360 Series |
| Technical Datasheet | |
| Supply Voltage DC Min | 4.5V |
| Sensor Type | Hall-Effect Rotary Position Sensor |
| Supply Voltage DC Max | 5.5V |
| Sensor Terminals | Wire Leads |
| Shaft Type | Joystick |
| Contact Type | Non-Contact |
| Sensor Housing | Rotatable |
| Output Configuration | Analogue |
| Electrical Angle | 360° |
| Linearity | ± 1.5% |
| Supply Voltage | 5VDC |
| Supply Current | 12.6mA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | MSX360 Series |
| SVHC | No SVHC (23-Jan-2024) |
Product Overview

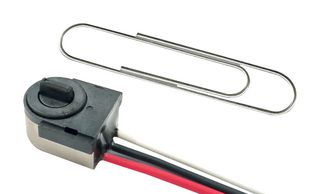

MSX360-1A-C0004-ERA360-05K is a MSC360 series miniature hall-effect rotary position sensor. It is ideally suited for applications with space constraints. Despite its compact size of just 28mm x 17mm, this hall-effect sensor offers high performance with a 360° electrical angle (without dead zone), 12-bit resolution, extended life, and protection against EMI and ESD. It can be customized to meet specific customer needs, providing a high price-performance ratio even in the most demanding environments. Applications include instrumentation, autonomous warehouse robotics, robotics and automation feedback, hand controls, float level sensors (industrial), HVAC systems, valve monitoring (home and building automation), EGR valves, gear position sensors, autonomous steering, joystick controls, and hand throttle position (transportation). Without any gears or mechanical interfaces the sensor is easily assembled and calibrated and subject to limited wear and tear over lifetime.
- Simple type, analogic output, 2.5KHz PWM frequency, 360° electrical angular
- 12.6mA typ supply current (simple output), linearity is ±1.5% absolute
- Up to 7,000,000 cycles rotational life, 360° mechanical range
- 5.9mm shaft diameter
- True, contactless operation, fits in the smallest of spaces
- Made for harsh environments, integrated shaft
- Absolute position feedback, adaptable to user requirements
- Operating temperature range from -40°C to +125°C
Technical Specifications
| Supply Voltage DC Min | 4.5V |
|---|---|
| Supply Voltage DC Max | 5.5V |
| Shaft Type | Joystick |
| Sensor Housing | Rotatable |
| Electrical Angle | 360° |
| Supply Voltage | 5VDC |
| Operating Temperature Min | -40°C |
| Product Range | MSX360 Series |
| Sensor Type | Hall-Effect Rotary Position Sensor |
|---|---|
| Sensor Terminals | Wire Leads |
| Contact Type | Non-Contact |
| Output Configuration | Analogue |
| Linearity | ± 1.5% |
| Supply Current | 12.6mA |
| Operating Temperature Max | 125°C |
| SVHC | No SVHC (23-Jan-2024) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Spain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90318080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .023 |
