31-2367-RFX
RF / Coaxial Connector, TNC Coaxial, Straight Plug, Crimp, 50 ohm
Image is for illustrative purposes only. Please refer to product description.
52 In Stock
Need more?
52 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$26.230 |
| 10+ | HK$23.190 |
| 25+ | HK$22.530 |
| 50+ | HK$21.790 |
| 100+ | HK$18.990 |
| 250+ | HK$18.170 |
| 500+ | HK$17.100 |
| 1000+ | HK$15.710 |
| 2500+ | HK$15.460 |
Price for:Each
Minimum: 1
Multiple: 1
HK$26.23
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL RF
Manufacturer Part No31-2367-RFX
Order Code2579816
Technical Datasheet
Connector TypeTNC Coaxial
Connector Body StyleStraight Plug
Coaxial TerminationCrimp
Impedance50ohm
Coaxial Cable TypeBelden 9907, Belden B7806A, LMR-195, RG58, RG58A, RG58B, RG58C, RG141, RG303
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Frequency Max11GHz
Connector MountingCable Mount
Product Range-
Product Overview

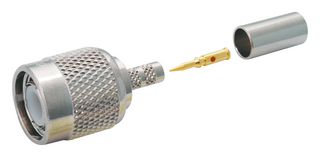

The 31-2367-RFX is a straight TNC Coaxial Plug with gold-plated brass contact. This coaxial plug is suitable for RG55, RG142A, RG223 and RG400 cable. It features crimp coaxial termination and 11GHz maximum frequency.
- Nickel-plated brass body
- Delrin insulator
- 500-cycle Minimum durability
- 0.213" Hex crimped ferrule
- 0.068" Hex crimped contact pin
Applications
RF Communications
Technical Specifications
Connector Type
TNC Coaxial
Coaxial Termination
Crimp
Coaxial Cable Type
Belden 9907, Belden B7806A, LMR-195, RG58, RG58A, RG58B, RG58C, RG141, RG303
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
Connector Body Style
Straight Plug
Impedance
50ohm
Contact Material
Brass
Frequency Max
11GHz
Product Range
-
Technical Docs (2)
Alternatives for 31-2367-RFX
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366910
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.013608
