FP-CA-4.7-AU
Power Film Capacitor, Metallized PP, Axial Leaded, 4.7 µF, ± 5%, Audio Systems, Through Hole

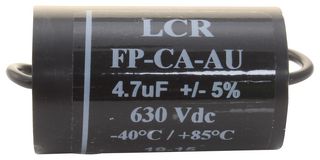

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LCR COMPONENTS |
|---|---|
| Manufacturer Part No | FP-CA-4.7-AUCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1438474 |
| Product Range | FP-CA-AU Series |
| Your Part Number | |
| Technical Datasheet |
49 In Stock
Need more?
49 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$74.450 |
| 5+ | HK$63.270 |
| 10+ | HK$60.390 |
| 20+ | HK$57.410 |
| 40+ | HK$52.300 |
| 100+ | HK$48.460 |
Price for:Each
Minimum: 1
Multiple: 1
HK$74.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LCR COMPONENTS |
|---|---|
| Manufacturer Part No | FP-CA-4.7-AUCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1438474 |
| Product Range | FP-CA-AU Series |
| Technical Datasheet | |
| Dielectric Type | Metallized PP |
| Capacitor Case / Package | Axial Leaded |
| Capacitance | 4.7µF |
| Capacitance Tolerance | ± 5% |
| Typical Applications | Audio Systems |
| Capacitor Mounting | Through Hole |
| Voltage(AC) | - |
| Voltage(DC) | 630V |
| Humidity Rating | - |
| Capacitor Terminals | PC Pin |
| Lead Spacing | - |
| dv/dt Rating | - |
| Peak Current | - |
| RMS Current (Irms) | - |
| ESR | - |
| Product Diameter | 45mm |
| Product Length | - |
| Product Width | - |
| Product Height | - |
| Ripple Current | - |
| Output (kvar) | - |
| Product Range | FP-CA-AU Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The FP-CA-4.7-AU is an axial leaded polypropylene metallised Film Capacitor for high performance audio systems. The capacitor is hand wound and have their insulated copper leads hand soldered before being assembled in a plastic case and resin sealed. The resin filled end identifies the outer winding. This construction results in the capacitors having low ESR and low inductance and possessing high stability with respect to both temperature and frequency. They are ideal for use in loudspeaker crossover networks and valve amplifiers where pure sound is at a premium.
- Tension controlled precision hand-winding
- High quality metalized film
- Hand-soldered internal connections
- Insulated copper lead-out
- High stability with respect to both temperature and frequency
- Rigid and resilient plastic housing
Technical Specifications
| Dielectric Type | Metallized PP |
|---|---|
| Capacitance | 4.7µF |
| Typical Applications | Audio Systems |
| Voltage(AC) | - |
| Humidity Rating | - |
| Lead Spacing | - |
| Peak Current | - |
| ESR | - |
| Product Length | - |
| Product Height | - |
| Output (kvar) | - |
| Operating Temperature Min | -40°C |
| Qualification | - |
| Capacitor Case / Package | Axial Leaded |
|---|---|
| Capacitance Tolerance | ± 5% |
| Capacitor Mounting | Through Hole |
| Voltage(DC) | 630V |
| Capacitor Terminals | PC Pin |
| dv/dt Rating | - |
| RMS Current (Irms) | - |
| Product Diameter | 45mm |
| Product Width | - |
| Ripple Current | - |
| Product Range | FP-CA-AU Series |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85322500 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01134 |
