| Manufacturer | BEL POWER SOLUTIONS |
|---|---|
| Manufacturer Part No | 0RCY-F0S10BGCopy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 2908018 |
| Product Range | CY Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$819.960 |
| 5+ | HK$788.390 |
| 10+ | HK$775.580 |
| 50+ | HK$741.360 |
Product Information
| Manufacturer | BEL POWER SOLUTIONS |
|---|---|
| Manufacturer Part No | 0RCY-F0S10BGCopy |
| Manufacturer Standard Lead Time | 52 weeks |
| Order Code | 2908018 |
| Product Range | CY Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| DC / DC Converter Type | Eighth Brick |
| Input Ratio | 1:1 |
| Output Power Max | 500W |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 10.2V |
| Output Current - Output 1 | 49A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Regulation | Regulated |
| Isolation Voltage | - |
| Input Voltage DC Nom | 50V |
| DC / DC Converter Output Type | Fixed |
| Width | 22.86mm |
| Height | 14.5mm |
| Depth | 58.42mm |
| Input Voltage DC Min | 45V |
| Input Voltage DC Max | 56V |
| Product Range | CY Series |
| SVHC | To Be Advised |
Product Overview

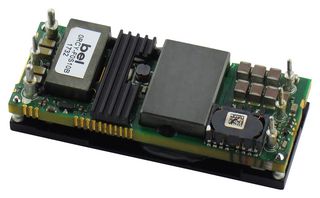

0RCY-F0S10BG is an isolated DC/DC converter that operates from a nominal 50V/54V source. This converter is intended to provide isolation and step down to generate a regulated intermediate bus to power non-isolated Point-of-Load (POL) converters. This unit will provide up to 500W of output power from a nominal 50V /54V input. The output of the converter has the droop function which allows the modules to operate in parallel with high output current sharing precision. These converters are provided in an industry-standard 1/8th brick package. The applications include networking, computers and peripherals, and telecommunications.
- Input voltage range from 45 to 56VDC, output voltage is 10.2VDC at 49A, typical efficiency of 97%
- High power density and low cost
- Output over-voltage protection, input under voltage lockout and OCP/SCP
- Fixed frequency (300KHz)
- Remote on/off
- Parallel operation
- Class II, category 2, isolated DC/DC converter
- Through hole mount
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Input Ratio | 1:1 |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 49A |
| Output Current - Output 2 | - |
| Isolation Voltage | - |
| DC / DC Converter Output Type | Fixed |
| Height | 14.5mm |
| Input Voltage DC Min | 45V |
| Product Range | CY Series |
| DC / DC Converter Type | Eighth Brick |
|---|---|
| Output Power Max | 500W |
| Output Voltage - Output 1 | 10.2V |
| Output Voltage - Output 2 | - |
| Output Regulation | Regulated |
| Input Voltage DC Nom | 50V |
| Width | 22.86mm |
| Depth | 58.42mm |
| Input Voltage DC Max | 56V |
| SVHC | To Be Advised |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004536 |
