| Manufacturer | BERGQUIST |
|---|---|
| Manufacturer Part No | SIL PAD TSP 1600SCopy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 1893430 |
| Product Range | SIL PAD TSP Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$541.400 |
| 5+ | HK$530.580 |
| 10+ | HK$519.750 |
Product Information
| Manufacturer | BERGQUIST |
|---|---|
| Manufacturer Part No | SIL PAD TSP 1600SCopy |
| Manufacturer Standard Lead Time | 22 weeks |
| Order Code | 1893430 |
| Product Range | SIL PAD TSP Series |
| Technical Datasheet | |
| Thermal Conductivity | 1.6W/m.K |
| Conductive Material | - |
| Thickness | 0.229mm |
| Thermal Impedance | - |
| Dielectric Strength | - |
| External Length | 304.8mm |
| External Width | 304.8mm |
| Product Range | SIL PAD TSP Series |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

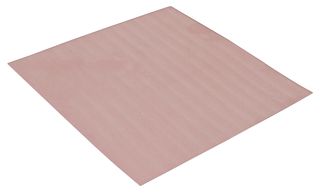

The SP900S-0.009-00-1212 is a Thermal Insulator designed for a wide variety of applications requiring high thermal performance and electrical isolation. These applications also typically have low mounting pressures for component clamping. The material combines a smooth and highly compliant surface characteristic with high thermal conductivity. These features optimize the thermal resistance properties at low pressures. Applications requiring low component clamping forces include discrete semiconductors (TO-220, TO-247 and TO-218) mounted with spring clips. Spring clips assist with quick assembly and apply a limited amount of force to the semiconductor. The smooth surface texture of Sil-Pad 900S minimizes interfacial thermal resistance and maximizes thermal performance.
- High performance
- Electrically isolating
- Low mounting pressures
- Smooth and highly compliant surface
- General-purpose thermal interface material solution
- UL94V-0 Flammability rating
- Available in pink colour
Applications
Thermal Management, Automotive, Power Management
Technical Specifications
| Thermal Conductivity | 1.6W/m.K |
|---|---|
| Thickness | 0.229mm |
| Dielectric Strength | - |
| External Width | 304.8mm |
| SVHC | No SVHC (25-Jun-2025) |
| Conductive Material | - |
|---|---|
| Thermal Impedance | - |
| External Length | 304.8mm |
| Product Range | SIL PAD TSP Series |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85479000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .159664 |
