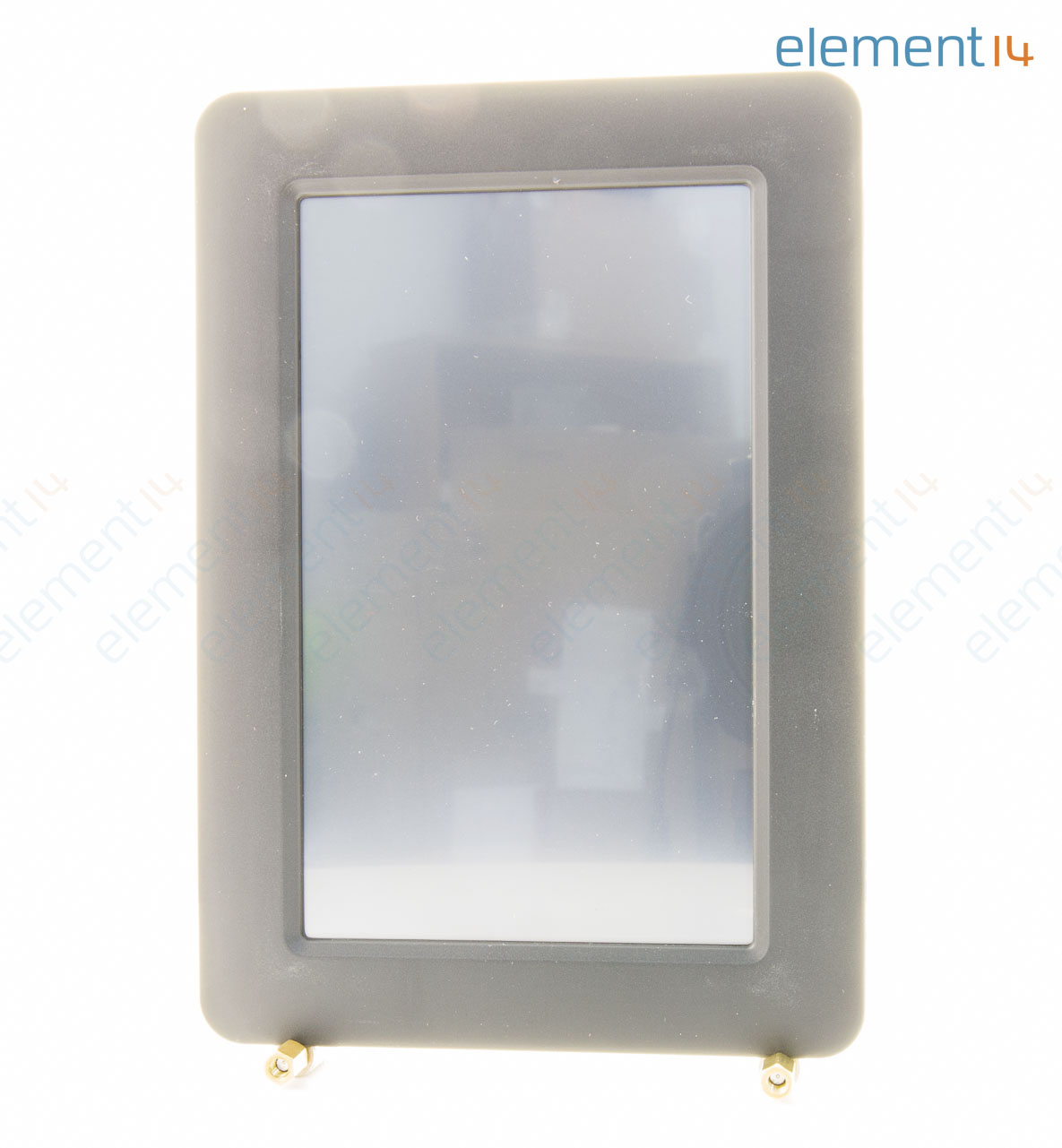

BRIDGETEK ME812AU-WH50R
Display Module, Bridgetek FT812 EVE IC, 5.0" 800x480 TFT LCD, Behaves like USB Device
- Manufacturer:
- BRIDGETEK BRIDGETEK
- Manufacturer Part No:
- ME812AU-WH50R
- Order Code:
- 2729647
-
- Technical Datasheet:
- ME812AU-WH50R Datasheet
- ECAD / MCAD
-
Product Overview
The ME812AU-WH50R from Bridgetek is a TFT active matrix LCD display module. This development module for Bridgetek's FT812, Embedded Video Engine (EVE) graphics controller IC. This module behaves as a USB device with an FT4222H USB to SPI bridge built on-board so that the module can be accessed from a PC or any other USB host. The ME812AU-WH50R module includes a 5inch 800 x 480 TFT LCD panel with resistive touch screen and an audio amplifier to drive 8ohm speaker.
- Maximum supply voltage of 5.5V, 400mA typ operating current (with LCD and backlight LED on)
- Ready to use 5inch WVGA LCD module, 16.7M display colours, 800(RGB) x 480 dots pixels
- Bright backlight LED with dimming (18 white), supports portrait and landscape display mode
- Supports resistive touch with pressure sensing
- Supports mono audio from FT812 or external source
- On board audio amplifier for driving an external speaker
- Support USB bus power
- Support USB high speed connection to PC or other USB host
- Operating temperature range from -20°C to 70°C
- Comes with bezel with four mounting holes for easy system assembly
Applications
Imaging, Video & Vision
Contents
ME812AU-WH50R development module, CleO-SPK1 8ohm 1W speaker enclosure with connecting wires, VA-FC-1M-BKW flat USB A to micro B cable 1M black and white, VA-FC-1M-BLW flat USB A to micro B cable 1M blue and white, VA-FC-STYLUS1 resistive touch screen pen stylus.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Bridgetek
- :
- FT812
- :
- Development
- :
- Graphics Controller
- :
- Development Module FT812, FT4222H USB Interface, 5-inch 800x480 TFT LCD Resistive Touch Panel
- :
- -
