284506-8

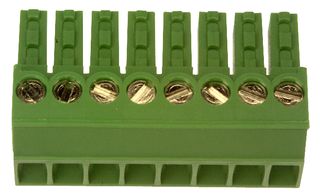

Standard Terminal Block, BUCHANAN 8 Series, 8 Contacts, 3.5 mm, Terminal Block, Eurostyle
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | TE CONNECTIVITY - BUCHANAN |
|---|---|
| Manufacturer Part No | 284506-8Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2059803 |
| Product Range | BUCHANAN 8 Series |
| Your Part Number | |
| Technical Datasheet |
118 In Stock
Need more?
118 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$110.900 |
| 10+ | HK$78.810 |
| 100+ | HK$60.060 |
| 250+ | HK$56.570 |
| 500+ | HK$53.080 |
| 1000+ | HK$51.100 |
Price for:Each
Minimum: 1
Multiple: 1
HK$110.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - BUCHANAN |
|---|---|
| Manufacturer Part No | 284506-8Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2059803 |
| Product Range | BUCHANAN 8 Series |
| Technical Datasheet | |
| Product Range | BUCHANAN 8 Series |
| No. of Contacts | 8Contacts |
| Pitch Spacing | 3.5mm |
| Connector Type | Terminal Block, Eurostyle |
| Connector Mounting | Cable Mount |
| Wire Size AWG Max | 14AWG |
| Wire Size AWG Min | 30AWG |
| Contact Plating | Tin Plated Contacts |
| Contact Material | Phosphor Bronze |
| SVHC | Lead (04-Feb-2026) |
Product Overview
The 284506-8 is a 8-position 1-row side stackable Terminal Block with tin-plated through-hole phosphor bronze contacts and polyamide 6.6 housing. The right angle plug terminal block has nickel-plated brass M2 screw.
- Side wire entry angle
Applications
Industrial
Technical Specifications
| Product Range | BUCHANAN 8 Series |
|---|---|
| Pitch Spacing | 3.5mm |
| Connector Mounting | Cable Mount |
| Wire Size AWG Min | 30AWG |
| Contact Material | Phosphor Bronze |
| No. of Contacts | 8Contacts |
|---|---|
| Connector Type | Terminal Block, Eurostyle |
| Wire Size AWG Max | 14AWG |
| Contact Plating | Tin Plated Contacts |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004536 |
