7101K2ZQE
Toggle Switch, On-None-On, SPDT, Non Illuminated, 7000 Series, Panel Mount, 5 A

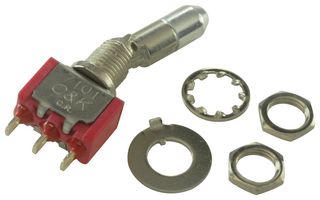

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | C&K COMPONENTS |
|---|---|
| Manufacturer Part No | 7101K2ZQECopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 1201382 |
| Product Range | 7000 Series |
| Your Part Number | |
| Technical Datasheet |
466 In Stock
Need more?
20 Delivery in 1-2 Business Days(SG stock)
446 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$136.420 |
| 5+ | HK$127.070 |
| 10+ | HK$117.720 |
| 20+ | HK$112.450 |
| 50+ | HK$106.640 |
Price for:Each
Minimum: 1
Multiple: 1
HK$136.42
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | C&K COMPONENTS |
|---|---|
| Manufacturer Part No | 7101K2ZQECopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 1201382 |
| Product Range | 7000 Series |
| Technical Datasheet | |
| Switch Operation | On-None-On |
| Contact Configuration | SPDT |
| Illumination | Non Illuminated |
| Product Range | 7000 Series |
| Switch Mounting | Panel Mount |
| Contact Current Max | 5A |
| Contact Voltage AC Nom | 120V |
| Switch Terminals | Solder Lug |
| Contact Voltage DC Nom | 28V |
| SVHC | Lead (10-Jun-2022) |
Product Overview
The 7101K2ZQE is a single-pole double-throw miniature Toggle Switch with solder lug terminations, silver contact, SP On-none-On function, 0.704-inch high locking lever actuator, stainless steel housing, glass filled nylon 6/6, flame-retardant, heat stabilized or Diallyl phthalate (DAP) (UL94V-0) case, chrome-plated brass actuator and epoxy terminal seal compatible with bottom wash cleaning.
- 10mΩ at 2 to 4VDC Initial contact resistance
- 10⁹Ω Minimum insulation resistance
- 1000VRMS at sea level Minimum dielectric strength
- -30 to +85°C Operating temperature range
Applications
Communications & Networking, Sensing & Instrumentation, Medical
Technical Specifications
| Switch Operation | On-None-On |
|---|---|
| Illumination | Non Illuminated |
| Switch Mounting | Panel Mount |
| Contact Voltage AC Nom | 120V |
| Contact Voltage DC Nom | 28V |
| Contact Configuration | SPDT |
|---|---|
| Product Range | 7000 Series |
| Contact Current Max | 5A |
| Switch Terminals | Solder Lug |
| SVHC | Lead (10-Jun-2022) |
Technical Docs (3)
Alternatives for 7101K2ZQE
6 Products Found
Associated Products
6 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Vietnam Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00635 |
