PCM13SMTR
Slide Switch, SP3T, On-On-On, Surface Mount, PCM Series, 300 mA

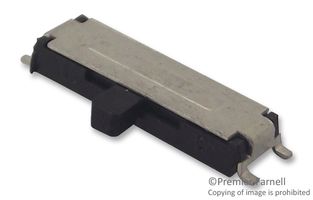

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | C&K COMPONENTS |
|---|---|
| Manufacturer Part No | PCM13SMTRCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | EACH 2320077 EACH 2320077RL |
| Product Range | PCM Series |
| Your Part Number | |
| Technical Datasheet |
17,339 In Stock
Need more?
17,339 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$10.900 |
| 10+ | HK$9.250 |
| 25+ | HK$8.590 |
| 50+ | HK$8.130 |
| 100+ | HK$7.660 |
Price for:Each
Minimum: 1
Multiple: 1
HK$10.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | C&K COMPONENTS |
|---|---|
| Manufacturer Part No | PCM13SMTRCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | EACH 2320077 EACH 2320077RL |
| Product Range | PCM Series |
| Technical Datasheet | |
| Contact Configuration | SP3T |
| Switch Operation | On-On-On |
| Switch Mounting | Surface Mount |
| Product Range | PCM Series |
| Contact Current Max | 300mA |
| Contact Voltage AC Max | - |
| Contact Voltage DC Max | 6V |
| Orientation | Right Angle |
Product Overview
The PCM13SMTR is a single-pole triple-throw (SP3T) ultra miniature surface-mount Slide Switch with ON-ON-ON function. The PCM series switch has PA6T case, stainless steel cover, nylon 4/6 slider, copper alloy silver clad brush and silver plated copper alloy terminal.
- 70mΩ Maximum contact resistance
- 100MΩ at 500V Minimum insulation resistance
- 500VAC Minimum dielectric strength
Applications
Computers & Computer Peripherals, Communications & Networking, Test & Measurement
Technical Specifications
| Contact Configuration | SP3T |
|---|---|
| Switch Mounting | Surface Mount |
| Contact Current Max | 300mA |
| Contact Voltage DC Max | 6V |
| Switch Operation | On-On-On |
|---|---|
| Product Range | PCM Series |
| Contact Voltage AC Max | - |
| Orientation | Right Angle |
Technical Docs (3)
Alternatives for PCM13SMTR
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000136 |
