CT3160-2

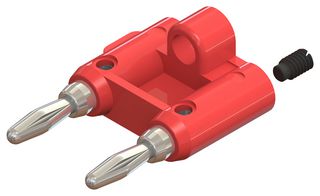

Banana Test Connector, Plug, Cable Mount, 15 A, 5 kVDC, Nickel Plated Contacts, Red
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CAL TEST ELECTRONICS |
|---|---|
| Manufacturer Part No | CT3160-2Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4531766 |
| Product Range | CT3160 Series |
| Your Part Number | |
| Technical Datasheet |
10 In Stock
Need more?
10 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$61.030 |
Price for:Each
Minimum: 1
Multiple: 1
HK$61.03
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CAL TEST ELECTRONICS |
|---|---|
| Manufacturer Part No | CT3160-2Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4531766 |
| Product Range | CT3160 Series |
| Technical Datasheet | |
| Gender | Plug(View Associated Connectors) |
| Connector Mounting | Cable Mount |
| Current Rating | 15A |
| Voltage Rating | 5kVDC |
| Contact Plating | Nickel Plated Contacts |
| Connector Colour | Red |
| Contact Material | Beryllium Copper |
| Contact Termination Type | Solderless |
| Product Range | CT3160 Series |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
CT3160-2 is a CT3160 series moulded 4mm double banana plug or MDP banana plug. Do-It-Yourself easy to assembly without solder dual banana plug.
- ABS body, brass with nickel plated plug, BeCU with nickel plated contact
- Cable diameters to 5.5mm
- Wire attachment to 18 - 22AWG
- 33VAC/ 70VDC IEC rating
- Maximum voltage of 5000VDC, maximum current of 15A, maximum resistance of 5mohm
- Temperature range from -20° to +80°C
- Red colour banana plug
Technical Specifications
| Gender | Plug |
|---|---|
| Current Rating | 15A |
| Contact Plating | Nickel Plated Contacts |
| Contact Material | Beryllium Copper |
| Product Range | CT3160 Series |
| Connector Mounting | Cable Mount |
|---|---|
| Voltage Rating | 5kVDC |
| Connector Colour | Red |
| Contact Termination Type | Solderless |
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .122 |
