CT3230-100

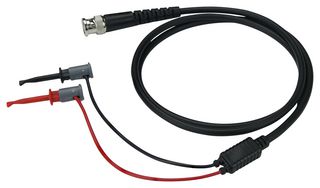

BNC Breakout, 50 ohm Impedance, BNC Plug, Hook Clips x 2, 3.3 ft, 1 m, Black, 3 A
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CAL TEST ELECTRONICS |
|---|---|
| Manufacturer Part No | CT3230-100Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4531650 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 19 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$192.740 |
Price for:Each
Minimum: 1
Multiple: 1
HK$192.74
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CAL TEST ELECTRONICS |
|---|---|
| Manufacturer Part No | CT3230-100Copy |
| Manufacturer Standard Lead Time | 19 weeks |
| Order Code | 4531650 |
| Technical Datasheet | |
| BNC Connector Type | BNC Plug |
| Test Connector Type B | Hook Clips x 2 |
| Lead Length - Imperial | 3.3ft |
| Lead Length - Metric | 1m |
| Insulator Colour | Black |
| Current Rating | 3A |
| Voltage Rating | 500Vrms |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
CT3230-100 is a high quality BNC male cable assembly to MiniPro test clip breakout.
- Brass or zinc with nickel plated material, brass with gold plated contact
- PVC black moulded bend relief boot
- BeCu with gold plated IC clip contact
- 500Vrms voltage, 3A current, 50 ohm impedance
- RG-58C/U type PVC jacketed cable
- Temperature range from 0 to +50°C
Technical Specifications
| BNC Connector Type | BNC Plug |
|---|---|
| Lead Length - Imperial | 3.3ft |
| Insulator Colour | Black |
| Voltage Rating | 500Vrms |
| SVHC | No SVHC (27-Jun-2024) |
| Test Connector Type B | Hook Clips x 2 |
|---|---|
| Lead Length - Metric | 1m |
| Current Rating | 3A |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .061779 |
