CTB0508/10
Standard Terminal Block, Wire to Board, CTB0508, 10 Contacts, 5.08 mm, Terminal Block, PCB

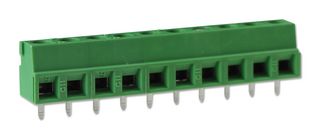

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CAMDENBOSS |
|---|---|
| Manufacturer Part No | CTB0508/10Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2315260 |
| Product Range | CTB0508 |
| Your Part Number | |
| Technical Datasheet |
38 In Stock
Need more?
38 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$42.710 |
| 10+ | HK$36.820 |
| 100+ | HK$34.990 |
| 250+ | HK$34.030 |
| 500+ | HK$33.280 |
| 1000+ | HK$28.140 |
Price for:Each
Minimum: 1
Multiple: 1
HK$42.71
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CAMDENBOSS |
|---|---|
| Manufacturer Part No | CTB0508/10Copy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 2315260 |
| Product Range | CTB0508 |
| Technical Datasheet | |
| Product Range | CTB0508 |
| No. of Contacts | 10Contacts |
| Pitch Spacing | 5.08mm |
| Connector Type | Terminal Block, PCB |
| Connector Mounting | PCB Mount |
| Wire Size AWG Max | 14AWG |
| Wire Size AWG Min | 30AWG |
| Contact Plating | Nickel Plated Contacts |
| Contact Material | Brass |
| SVHC | Lead (21-Jan-2025) |
Product Overview
The CTB0508 series PCB Terminal Block with 5.08mm pitch and low-profile rising clamp. It has 2 and 3-pole double interlocking mechanism for increased strength and moulded in green flame retardant PA. It is a professional rising clamp terminal with 0.2 to 2.5mm² (30 to 14AWG) solid cable and 0.2 to 1.5mm² (30 to 14AWG) stranded cable.
- UL94V-0 Flammability
- 4 to 12 Solid block end stackable
- Guided pin alignment
- Captive screws
Applications
Industrial
Technical Specifications
| Product Range | CTB0508 |
|---|---|
| Pitch Spacing | 5.08mm |
| Connector Mounting | PCB Mount |
| Wire Size AWG Min | 30AWG |
| Contact Material | Brass |
| No. of Contacts | 10Contacts |
|---|---|
| Connector Type | Terminal Block, PCB |
| Wire Size AWG Max | 14AWG |
| Contact Plating | Nickel Plated Contacts |
| SVHC | Lead (21-Jan-2025) |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01 |
