CTBP9358/4AO

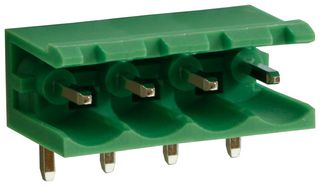

Terminal Block, Open Ended, Header, 5.08 mm, 4 Ways, Through Hole Right Angle
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CAMDENBOSS |
|---|---|
| Manufacturer Part No | CTBP9358/4AOCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2527837 |
| Product Range | CamBlock Plus |
| Your Part Number | |
| Technical Datasheet |
259 In Stock
Need more?
20 Delivery in 1-2 Business Days(SG stock)
239 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | HK$3.170 |
| 100+ | HK$2.810 |
| 500+ | HK$2.560 |
| 1000+ | HK$2.400 |
| 2500+ | HK$2.310 |
| 5000+ | HK$2.220 |
Price for:Each
Minimum: 10
Multiple: 10
HK$31.70
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CAMDENBOSS |
|---|---|
| Manufacturer Part No | CTBP9358/4AOCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2527837 |
| Product Range | CamBlock Plus |
| Technical Datasheet | |
| Gender | Header |
| Pitch Spacing | 5.08mm |
| No. of Positions | 4Ways |
| Rated Current | - |
| Rated Voltage | - |
| Block Orientation | Through Hole Right Angle |
| Product Range | CamBlock Plus |
| SVHC | Lead (21-Jan-2025) |
Product Overview
- Wire size of 1.5mm² (28AWG to 14AWG) solid & stranded cable
- Professional rising clamp terminal, anti solder wicking
- Guided pin alignment
- Insulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohm contact resistance
- Working temperature range from -40°C to 105°C
- Length: 20.3mm
Technical Specifications
| Gender | Header |
|---|---|
| No. of Positions | 4Ways |
| Rated Voltage | - |
| Product Range | CamBlock Plus |
| Pitch Spacing | 5.08mm |
|---|---|
| Rated Current | - |
| Block Orientation | Through Hole Right Angle |
| SVHC | Lead (21-Jan-2025) |
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .013608 |
