CTSN431/12MF

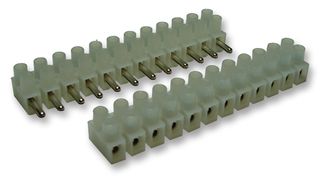

Terminal Strip, Plug-in, 12 Way, 450VAC, 17.5A, Screw Termination
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CAMDENBOSS |
|---|---|
| Manufacturer Part No | CTSN431/12MFCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3498283 |
| Product Range | CTSN |
| Your Part Number | |
| Technical Datasheet |
499 In Stock
Need more?
499 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$109.080 |
| 10+ | HK$95.450 |
| 100+ | HK$79.080 |
| 250+ | HK$77.500 |
| 500+ | HK$75.920 |
| 1000+ | HK$74.340 |
Price for:Each
Minimum: 1
Multiple: 1
HK$109.08
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CAMDENBOSS |
|---|---|
| Manufacturer Part No | CTSN431/12MFCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 3498283 |
| Product Range | CTSN |
| Technical Datasheet | |
| Product Range | CTSN |
| No. of Contacts | 12Contacts |
| Pitch Spacing | 8mm |
| Connector Type | Terminal Block, Pluggable |
| Connector Mounting | - |
| Wire Size AWG Max | 12AWG |
| Wire Size AWG Min | - |
| Contact Plating | Zinc Plated Contacts |
| Contact Material | Brass |
| SVHC | Lead (21-Jan-2025) |
Product Overview
- Moulded in natural PA6, self extinguishing to UL94-V2
- Passes 960°C glow-wire test according to EN 60695-2-11
- Easily cut to size
- Voltage (Maximum): 450V AC
- Cable acceptance: 4mm² / 12AWG
- Maximum current: 17.5A
- Terminal screws: M3
- Pitch / UL rating: 8mm / 6A
- Dimensions (LxWxH): 94x16x15.4mm
- Fixing hole diameter: 2.75mm
Technical Specifications
| Product Range | CTSN |
|---|---|
| Pitch Spacing | 8mm |
| Connector Mounting | - |
| Wire Size AWG Min | - |
| Contact Material | Brass |
| No. of Contacts | 12Contacts |
|---|---|
| Connector Type | Terminal Block, Pluggable |
| Wire Size AWG Max | 12AWG |
| Contact Plating | Zinc Plated Contacts |
| SVHC | Lead (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Spain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .540047 |
