9104-05-11

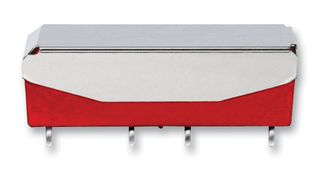

Reed Relay, SPST-NO, 5 VDC, 9104 Series, Through Hole, 175 ohm, 500 mA
| Manufacturer | COTO TECHNOLOGY |
|---|---|
| Manufacturer Part No | 9104-05-11Copy |
| Manufacturer Standard Lead Time | 59 weeks |
| Order Code | 2103579 |
| Product Range | 9104 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$104.680 |
| 5+ | HK$100.370 |
| 10+ | HK$96.130 |
| 25+ | HK$91.820 |
| 50+ | HK$89.000 |
| 100+ | HK$87.430 |
| 250+ | HK$84.770 |
Product Information
| Manufacturer | COTO TECHNOLOGY |
|---|---|
| Manufacturer Part No | 9104-05-11Copy |
| Manufacturer Standard Lead Time | 59 weeks |
| Order Code | 2103579 |
| Product Range | 9104 Series |
| Technical Datasheet | |
| Contact Configuration | SPST-NO |
| Coil Voltage | 5VDC |
| Product Range | 9104 Series |
| Relay Mounting | Through Hole |
| Coil Resistance | 175ohm |
| Switching Current Max | 500mA |
| Switching Voltage Max | 1kV |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
The 9104-05-11 is a high voltage SIP Reed Relay with external magnetic shield and diode. This 9104-series moulded SIP relays are the industry standard when high reliability and consistent performance are desired in a compact package. These high voltage, high performance relays are ideally suited for automatic test equipment, instrumentation and process control applications where voltage isolation is a key design requirement. High reliability, hermetically sealed contacts for long life. high speed switching compared to electromechanical relays. Moulded thermoset body on integral lead frame design.
- High voltage switching up to 1000V
- 2000VDC High dielectric strength
- High insulation resistance
- Magnetic shield
Applications
Automation & Process Control, Sensing & Instrumentation
Technical Specifications
| Contact Configuration | SPST-NO |
|---|---|
| Product Range | 9104 Series |
| Coil Resistance | 175ohm |
| Switching Voltage Max | 1kV |
| Coil Voltage | 5VDC |
|---|---|
| Relay Mounting | Through Hole |
| Switching Current Max | 500mA |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85364110 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002722 |
