9814-05-00TR
Reed Relay, SPST-NO, 5 VDC, 9814 Series, Surface Mount, 150 ohm, 250 mA
| Manufacturer | COTO TECHNOLOGY |
|---|---|
| Manufacturer Part No | 9814-05-00TRCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | Re-Reel2787118RL Cut Tape2787118 |
| Product Range | 9814 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | HK$100.920 | HK$100.92 |
| Total Price | HK$100.92 | ||
| Quantity | Price |
|---|---|
| 1+ | HK$100.920 |
| 5+ | HK$96.060 |
| 10+ | HK$91.120 |
| 25+ | HK$87.510 |
| 50+ | HK$84.920 |
| 100+ | HK$82.330 |
| 250+ | HK$79.200 |
Product Information
| Manufacturer | COTO TECHNOLOGY |
|---|---|
| Manufacturer Part No | 9814-05-00TRCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | Re-Reel2787118RL Cut Tape2787118 |
| Product Range | 9814 Series |
| Technical Datasheet | |
| Contact Configuration | SPST-NO |
| Coil Voltage | 5VDC |
| Product Range | 9814 Series |
| Relay Mounting | Surface Mount |
| Coil Resistance | 150ohm |
| Switching Current Max | 250mA |
| Switching Voltage Max | 100V |
| SVHC | Lead (21-Jan-2025) |
Product Overview

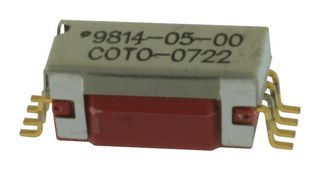

The 9814-05-00TR is a surface mount Reed Relay with gull wing lead style. This 9814-series relay has SPST-NO hermetically sealed contacts for long life. Ideally suited to the needs of automated test equipment, instrumentation and telecommunications requirements. The external magnetic shield reduces interaction between parts in high density boards. Small size plus added features allow for high density packing and make these relays ideal for designs such as high speed, high pin count VLSI testers where high speed, small size and high performance are all needed.
- High insulation resistance
- Coaxial shield for 50Ω impedance
- High reliability
- -20 to 85°C Operating temperature range
Applications
Communications & Networking, Automation & Process Control, Test & Measurement
Technical Specifications
| Contact Configuration | SPST-NO |
|---|---|
| Product Range | 9814 Series |
| Coil Resistance | 150ohm |
| Switching Voltage Max | 100V |
| Coil Voltage | 5VDC |
|---|---|
| Relay Mounting | Surface Mount |
| Switching Current Max | 250mA |
| SVHC | Lead (21-Jan-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85364900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000958 |
