219-9MST
DIP / SIP Switch, 9 Circuits, Slide, Surface Mount, SPST, 50 V, 100 mA

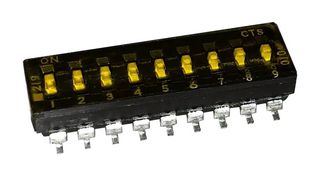

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | CTS |
|---|---|
| Manufacturer Part No | 219-9MSTCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3778105 |
| Product Range | 219 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$10.030 |
| 10+ | HK$8.090 |
| 25+ | HK$7.630 |
| 50+ | HK$7.350 |
| 100+ | HK$7.070 |
Price for:Each
Minimum: 1
Multiple: 1
HK$10.03
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CTS |
|---|---|
| Manufacturer Part No | 219-9MSTCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 3778105 |
| Product Range | 219 Series |
| Technical Datasheet | |
| No. of Circuits | 9Circuits |
| Switch Actuator Style | Slide |
| Switch Mounting | Surface Mount |
| Contact Configuration | SPST |
| Contact Voltage DC Max | 50V |
| Contact Current DC Max | 100mA |
| Product Range | 219 Series |
| Switch Type | DIP Sealed |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
- 219 series 9 position SMD SPST DIP switch
- Medium actuator (0.25mm/.010")
- Positive detent separated from contactor causes contactor does not deflect during actuation
- Unique compact type design allows to be used at small size application
- Bottom epoxy seal, top tape seal and gull wing bend terminal
- Ideal choice for any server, security and HVAC systems
Technical Specifications
| No. of Circuits | 9Circuits |
|---|---|
| Switch Mounting | Surface Mount |
| Contact Voltage DC Max | 50V |
| Product Range | 219 Series |
| SVHC | No SVHC (25-Jun-2025) |
| Switch Actuator Style | Slide |
|---|---|
| Contact Configuration | SPST |
| Contact Current DC Max | 100mA |
| Switch Type | DIP Sealed |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002144 |
