S2-24E
Reed Relay, SPST-NO, 24 VDC, S2 Series, Through Hole, 1 kohm, 1 A

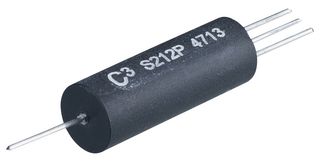

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | SENSATA / CYNERGY3 |
|---|---|
| Manufacturer Part No | S2-24ECopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 2480008 |
| Product Range | S2 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$180.820 |
| 5+ | HK$176.550 |
| 10+ | HK$172.270 |
| 20+ | HK$168.290 |
| 50+ | HK$164.310 |
Price for:Each
Minimum: 1
Multiple: 1
HK$180.82
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SENSATA / CYNERGY3 |
|---|---|
| Manufacturer Part No | S2-24ECopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 2480008 |
| Product Range | S2 Series |
| Technical Datasheet | |
| Contact Configuration | SPST-NO |
| Coil Voltage | 24VDC |
| Product Range | S2 Series |
| Relay Mounting | Through Hole |
| Coil Resistance | 1kohm |
| Switching Current Max | 1A |
| Switching Voltage Max | 350VDC |
Product Overview
The S2 series axial style Reed Relay has been developed for applications where PCB mounting is not possible. The relay can be mounted in a variety of methods and orientations to suit particular applications. The lead-out wires are flexible enough to allow bending for assembly into equipment. It is available with either a 10/50W contact in a pressurised reed switch or a 100W contact in an evacuated reed switch.
- Variable mounting options
- Reliable reed switch contacts
Applications
Industrial, Test & Measurement
Technical Specifications
| Contact Configuration | SPST-NO |
|---|---|
| Product Range | S2 Series |
| Coil Resistance | 1kohm |
| Switching Voltage Max | 350VDC |
| Coil Voltage | 24VDC |
|---|---|
| Relay Mounting | Through Hole |
| Switching Current Max | 1A |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85364110 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .009344 |
