S2-24EU
Reed Relay, SPST-NO, 24 VDC, S2 Series, Through Hole, 1 kohm, 1 A

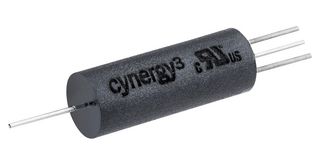

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | SENSATA / CYNERGY3 |
|---|---|
| Manufacturer Part No | S2-24EUCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 2664004 |
| Product Range | S2 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$204.960 |
| 5+ | HK$200.000 |
| 10+ | HK$195.040 |
| 20+ | HK$191.140 |
Price for:Each
Minimum: 1
Multiple: 1
HK$204.96
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | SENSATA / CYNERGY3 |
|---|---|
| Manufacturer Part No | S2-24EUCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 2664004 |
| Product Range | S2 Series |
| Technical Datasheet | |
| Contact Configuration | SPST-NO |
| Coil Voltage | 24VDC |
| Product Range | S2 Series |
| Relay Mounting | Through Hole |
| Coil Resistance | 1kohm |
| Switching Current Max | 1A |
| Switching Voltage Max | 350VDC |
Product Overview
The S2-24EU from Cynergy3 is an UL approved axial style reed relay. The relay can be mounted in a variety of methods and orientations to suit particular applications. The lead-out wires are flexible enough to allow bending for assembly into equipment.
- Coil voltage is 24VDC
- Switching power is 100VA, switching voltage is 350VDC/300VAC, switching current is 1A
- Isolation voltage is 1000VDC
- Rhodium material, vacuum atmosphere
- Carry current is 2.5A
- Initial contact resistance is 100mohm
- Isolation between contact /coil is 1000VDC
- Operating temperature range from -40°C to +85°C
- Coil resistance is 1000 ohm
Applications
Industrial
Technical Specifications
| Contact Configuration | SPST-NO |
|---|---|
| Product Range | S2 Series |
| Coil Resistance | 1kohm |
| Switching Voltage Max | 350VDC |
| Coil Voltage | 24VDC |
|---|---|
| Relay Mounting | Through Hole |
| Switching Current Max | 1A |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85364900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002495 |
