DELTRON COMPONENTS 563-0400-01

Banana Test Connector, 4mm, Socket, Panel Mount, 10 A, 50 V, Silver Plated Contacts, Green

DELTRON COMPONENTS 563-0400-01
×

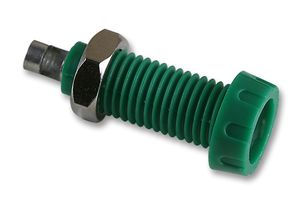

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
563-0400-01
Order Code:
1101115
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
GTIN UPC EAN: 5056414505780
Technical Datasheet:
563-0400-01   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
10A

:
50V

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

The 563-0400-01 is a 4mm panel-mount Socket with solder bucket connection. It has green polypropylene insulant, silver-plated BS2874 brass pin and nut. Rigid panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs and it is suitable for panel up to 13.5mm thick.
  • Green 4mm Panel Socket - Solder Bucket Connection
  • Panel mounting socket retained in place by a nut, which accepts 4mm diameter plugs
  • Suitable for panels up to 13.5mm thick
  • Connection via a solder bucket
  • Insulant: Polypropylene
  • Pin: Brass BS2874 Silver Plated
  • Nut: Brass BS2874 Nickel Plated
  • Current Rating: 10 Amps
  • Nominal Working Voltage: 250V RMS
  • Contact Resistance: 10mΩ
  • Maximum Temperature RTI: +147°C
  • Minimum Temperature: -20°
  • Recommended Temperature: 10A @ 55°C
  • Voltage Breakdown: 5000V
  • Conductor Size: 1.5mm²
  • Fixing Torque: 0.4Nm

Applications

Test & Measurement

Also Known As

GTIN UPC EAN: 5056414505780

2,523 In stock Need more?

605 SG stock available for 1-2 business days delivery
1,918 UK stock available for 3-4 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

HK$8.03

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
  • 5+
  • 10+
  • 20+
Quantity Price Your Price


1+ HK$8.03
