SEN0370

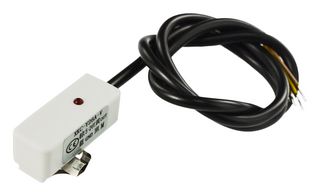

The DFRobot SEN0370 is a non-contact liquid level sensor with a status indicator and adjustable sensitivity. It is especially suitable for detecting the liquid level of all sorts of non-metal tubes (suitable for outer diameter ≤10mm). This non-contact liquid level sensor is based on a high-speed chip with advanced signal processing technology. It can measure the liquid level of a closed container and it will not be affected by corrosive liquids like strong acid and alkali. The status feedback of the sensor is given in real-time and the sensor also comes with a 4-pin adaptor that can directly collect digital signals, making it ideal for connecting to Arduino or other controllers.

• Adjustable sensitivity with status indicator
• Robust ABS material
• IP65 Rated for waterproof operation
• Power Supply: 5-24V
• Response Time: 500ms
• Operating Temperature: -5°C to 105°C
• Suitable Pipe Diameter: ≤10mm
• Liquid Level Error: ±1.5mm

Contents

Liquid level sensor, 4-pin Gravity sensor adaptor and screwdriver
